PJ Trailers · Equipment Trailers
6" Channel Equipment Model CD
Proven PJ Quality. Exceptional Value.

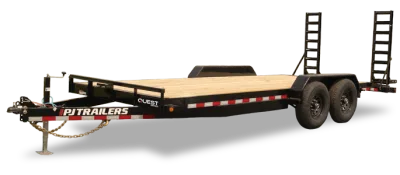

The 6" Channel Equipment Trailer (CD) combines enhanced functionality with uncompromised durability. Built with a sturdy 6-inch channel frame and tongue, it offers superior strength and longevity. Reliable cargo securement is assured with six standard stake pockets, while the adjustable coupler ensures a perfect match between your truck hitch. Fast and efficient loading is achieved with a 32" wood-filled dovetail and 5' fold-up ramps, and the removable fenders provide extra width clearance for wider equipment.
- Deck Width
- 83"
- Deck Lengths
- 18' to 22'
- GVWR
- 14,000 lbs
- Load Capacity
- 10,980 to 11,380 lbs
Spec sheets & brochures
Standard features
| Feature | Standard | Available options |
|---|---|---|
| Axles | [72BS] (2) 7,000# Electric / Spring |
|
| Suspension | 6-Leaf Slipper Spring Suspension | - |
| Tongue | 6" Channel Tongue | - |
| Coupler | [C] BP 2-5/16" Adjustable |
|
| Safety Chains | 5/16" Grade 70 Safety Chain w/Clevis hook (2 each) | - |
| Jack | 7,000# Top Wind Drop Leg Jack | - |
| Frame | 6" Channel Frame | - |
| Cross-Members | 3” Channel Crossmembers 16” oc | - |
| Floor | 2" Treated Pine Lumber Deck | - |
| Fenders | 9" x 72" Treadplate Removable Steel Fenders | - |
| Dovetail | 32" Dovetail with Fold-Up Ramps | - |
| Stake Pockets | 24" Stake Pocket Spacing | - |
| Wiring | All-Weather Wiring Harness (7-way RV) | - |
| Tires | ST235/80R16 Radial Tires 10 ply (3,520 lbs.) | - |
| Spare Tire | Available as an option |
|
| Paint Color | [K] Primer + Black Powder Coat |
|
| Breakaway System | Electric Breakaway System w/ Charger | - |
| Other Options | Available as an option |
|
Models & dimensions
| Model | Pull Type | GVWR | Empty Weight | Payload Capacity | Deck Length | Deck Width | Tongue Length |
|---|---|---|---|---|---|---|---|
| CD (18') | Bumperpull | 14000 lbs | 2620 lbs | 11380 lbs | 18 | 83" | 4' 7" (55") |
| CD (20') | Bumperpull | 14000 lbs | 2820 lbs | 11180 lbs | 20 | 83" | 4' 7" (55") |
| CD (22') | Bumperpull | 14000 lbs | 3020 lbs | 10980 lbs | 22 | 83" | 4' 7" (55") |
We carry PJ Trailers
Want this PJ Trailers 6" Channel Equipment (CD)? Check what we have on the lot right now, or ask us to order the exact configuration you need.
