PJ Trailers · Equipment Trailers

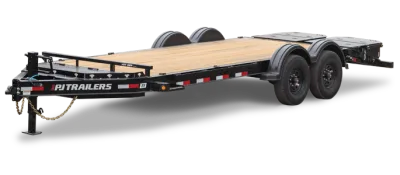

Seamless I-Beam Equipment Trailer Model EV
Introducing the Seamless I-Beam Equipment Trailer (EV) from PJ Trailers, part of the all-new Voyager Series.
Designed for professionals who demand durability and innovation, this trailer incorporates the cutting-edge HaulGuard fenders by Minimizer. The EV also revolutionizes loading and unloading with its optional Self-Stabilizing Monster Ramps, alongside other customizable ramp solutions, providing unparalleled flexibility and safety for any hauling need.
- Deck Width
- 83"
- Deck Lengths
- 16' to 24'
- GVWR
- 15,400 lbs
- Load Capacity
- 12,135 to 12,545 lbs
Spec sheets & brochures
Standard features
| Feature | Standard | Available options |
|---|---|---|
| Axles | [72BS] (2) 7,000# Electric / Spring |
|
| Suspension | 6-Leaf Slipper Spring Suspension | - |
| Tongue | 8" x 10 lb. I-beam Tongue | - |
| Coupler | [J] BP 2-5/16" Adjustable- Demco EZ-Latch |
|
| Jack | Drop Leg Jack (12,000 lb.) | - |
| Frame | 8" x 10 lb. I-Beam Main Frame | - |
| Cross-Members | 3” Channel Crossmembers 16” oc | - |
| Floor | 2" Treated Pine Lumber Deck | - |

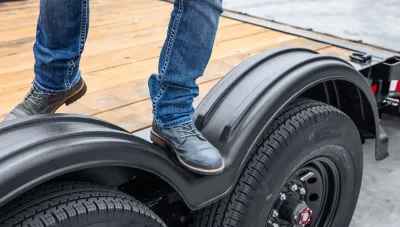

| Fenders | Haulguard ™ Composite Fenders | - |
| Stake Pockets | 24" Stake Pocket Spacing | - |
| Lights | DOT Approved Flushmount Lifetime LED Lights | - |
| Wiring | All-Weather Wiring Harness (7-way RV) | - |
| Tires | 235/80R16 Radial Tires (3,520 lb) | - |
| Paint Color | [K] Primer + Black Powder Coat |
|
| Rubrail | Rubrail & Stake Pockets | - |
| Tie-Downs | (6) D-rings |
|
| Breakaway System | Electric Breakaway Kit w/ Charger | - |
| Steps | Monster Steps (Both Sides) | - |
| Storage | Full-Tongue Locking Toolbox w/ Exterior Lashing Points | - |
| Cargo Winch | Available as an option |
|
| Tail | [E] 3.5' Dovetail w/ 5' Fold-up Ramps |
|
| Other Options | Available as an option |
|
Models & dimensions
| Model | Pull Type | GVWR | Empty Weight | Deck Length | Deck Width | Tongue Length |
|---|---|---|---|---|---|---|
| EV (16') | Bumperpull | 15400 lbs | 2,855 lbs. lbs | 16 | 83" | 4' |
| EV (18') | Bumperpull | 15400 lbs | 2,930 lbs. lbs | 18 | 83" | 4' |
| EV (20') | Bumperpull | 15400 lbs | 3,025 lbs. lbs | 20 | 83" | 4' |
| EV (22') | Bumperpull | 15400 lbs | 3,160 lbs. lbs | 22 | 83" | 4' |
| EV (24') | Bumperpull | 15400 lbs | 3,265 lbs. lbs | 24 | 83" | 4' |
We carry PJ Trailers
Want this PJ Trailers Seamless I-Beam Equipment Trailer (EV)? Check what we have on the lot right now, or ask us to order the exact configuration you need.
