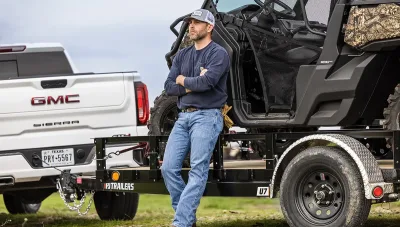

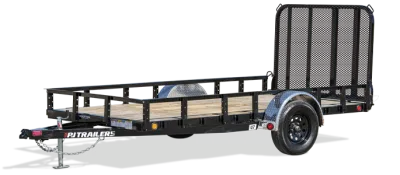

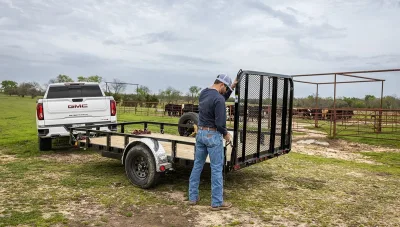

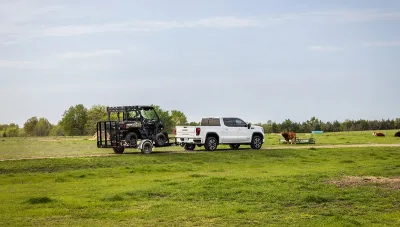

77" Single Axle Channel Utility Model U7

Need a reliable and affordable trailer that’s built for general hauling tasks?

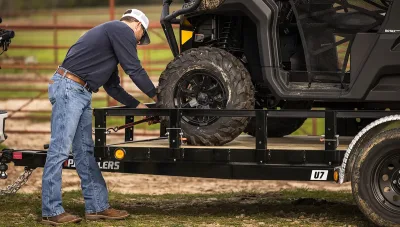

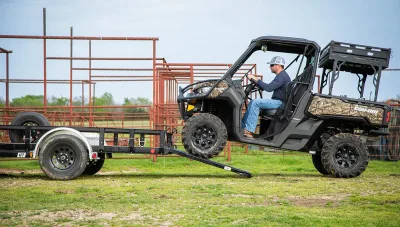

Look no further than the 77" Single Axle Channel Utility Trailer (U7) and get ready to take on any job with confidence. With its 77" wide deck, you get the space you need to haul all kinds of cargo, including ATVs, UTVs, lawn equipment, and other light loads. If you like to forge your own path, this trailer was built for you.

Deck Width: 77"
Deck Lengths: 10' to 14'
GVWR: 2,990 lbs
Load Capacity: 1,890 to 3,575 lbs

See PJ Trailers in stock Request a quote

Spec sheets & brochures

Spec Sheet PDF · 3.6 MB View Color Options PDF · 656 KB

Standard features

Feature	Standard	Available options
Axles	[31DS] (1) 3,500# Idler / Spring	[11DS] (1) 3,500# Idler / Spring With Upgrade to 225/75 R15 on 3.5k Axles [11BS] (1) 3,500# Electric / Spring With Upgrade to 225/75 R15 on 3.5k Axles [31BS] (1) 3,500# Electric / Spring [51DS] (1) 5,200# Idler / Spring [51BS] (1) 5,200# Electric / Spring
Suspension	4-Leaf Double-Eye Spring Suspension	-
Tongue	4" Channel Wrapped Tongue	-
Coupler	[2] BP 2" A-Frame	[2] BP 2" A-Frame [A] BP 2-5/16" A-Frame
Safety Chains	5/16" Grade 30 Safety Chain w/Clevis hook (2 each)	-
Jack	Pipe Mount Swivel Jack (5,000 lb.)	[-JA10] 10k Jack w/ Non-Removable Front Rail [-JA12] Upgrade to 7k Jack [-JA13] Rear Trailer Support Jacks
Frame	4" Channel Frame	[-CM12] 12" OC Crossmembers [-CM16] 16" OC Crossmembers
Cross-Members	2-1/2" Angle Crossmembers on 24" Centers	-
Floor	2" Treated Pine Lumber Deck	[-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck [-FLNF] No Flooring [-SF02] 11ga DP Steel Flr w/ Flushmount D-Rings &16" OC
Fenders	9" x 33" Treadplate Removable Aluminum Fenders	[-FE05] Steel Diamond Plate Fenders
Ramps	Available as an option	[-ATVR] Side Mount ATV Ramps
Stake Pockets	Stake Pockets along both sides (Quantity depends on length)	[-2SPF] 2 Stake Pockets In Front of Trailer
Lights	Available as an option	[-7WPU] 7 Way Plug Upgrade
Wiring	Sealed Wire Harness	-
Paint Color	[K] Primer + Black Powder Coat	[K] Black Powder Coat [1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [P] Primer Only [Z] No Paint No Primer
Tie-Downs	Available as an option	[-TD01] 1 Set of Cargo Tie Down (2) Loops [-DR01] 1 Extra Pair D-Rings
Breakaway System	Electric Breakaway System w/ Charger	-
Sides	Available as an option	[-SG01] 4ft Side Gate (14ft or longer) [-SR01] 22" Solid Metal Sides w/ 2x2 sq tube [-SR02] 2ft Expanded Metal Sides [-SR03] Regular Sides w/Expanded Metal [-SR04] 4ft Expanded Metal Sides [-SR05] Regular Sides w/Solid Metal
Storage	Available as an option	[-TB01] Front Toolbox (Includes 7k jack upgrade) [-TB07] Landscape Toolbox
Top Rail	2" x 2" Top Rail	-
Cargo Winch	Available as an option	[-WN01] Plate for Winch (BP Only)
Uprights	2" x 2" Removable Side Rail equipped with Ready Rail®	-
Tail	[S] Straight Deck	[B] Dovetail w/ 4' Fold-up Gate [F] Straight Deck with Fold In Gate [G] Straight Deck w/ 4' Fold-up Gate [K] Straight Deck w/ Bi-Fold Gate [M] Dovetail w/ Bi-Fold Gate [R] Straight Deck w/ 5' Slide-in Ramps
Other Options	Available as an option	[-GV09] 9,900 G.V.W.R. [-RATL] Ramp Gate Transition Lip [-SAL1] Ship Axles Loose

Models & dimensions

Model	Pull Type	GVWR	Empty Weight	Deck Length	Deck Width	Tongue Length
U7 (10')	Bumperpull	2990 lbs	1100 lbs	10	77"	3' 5" (41")
U7 (12')	Bumperpull	2990 lbs	1330 lbs	12	77"	3' 5" (41")
U7 (14')	Bumperpull	2990 lbs	1420 lbs	14	77"	3' 5" (41")
