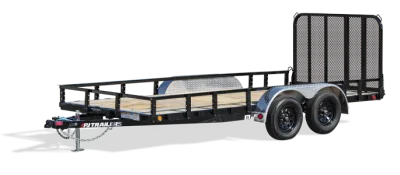

83" Tandem Axle Channel Utility Model UL

With an extra wide 83’’ deck, the 83" Tandem Axle Channel Utility Trailer (UL) is ready to haul everything from small tractors to light-duty equipment with its 7,000 lbs G.V.W.R

It is built strong for the extra strength you need for everyday hauling. If you need a tough and versatile utility trailer for hard work, the UL delivers the space and power you can count on.

Deck Width: 83"
Deck Lengths: 12' to 20'
GVWR: 7,000 lbs
Load Capacity: 5,500 to 7,749 lbs

See PJ Trailers in stock Request a quote

Spec sheets & brochures

Spec Sheet PDF · 3.6 MB View Color Options PDF · 656 KB

Standard features

Feature	Standard	Available options
Axles	[32CS] (2) 3,500# One Electric / Spring	[12CS] (2) 3,500# One Electric / Spring With Upgrade to 225/75 R15 on 3.5k Axles [12DS] (2) 3,500# Idler / Spring With Upgrade to 225/75 R15 on 3.5k Axles [12BS] (2) 3,500# Electric / Spring With Upgrade to 225/75 R15 on 3.5k Axles [32DS] (2) 3,500# Idler / Spring [32BS] (2) 3,500# Electric / Spring [52CS] (2) 5,200# One Electric / Spring [52BS] (2) 5,200# Electric / Spring
Suspension	4-Leaf Double-Eye Spring Suspension	-
Tongue	4" Channel Wrapped Tongue	-
Coupler	[2] BP 2" A-Frame	[2] BP 2" A-Frame [A] BP 2-5/16" A-Frame [J] BP 2-5/16" Adjustable
Safety Chains	5/16" Grade 30 Safety Chain w/Clevis hook (2 each)	-
Jack	Pipe Mount Swivel Jack (5,000 lb.)	[-JA10] 10k Jack w/ Non-Removable Front Rail [-JA11] 10k Jack & Tbox Upgrade w/ Non-Removable Front Rail [-JA12] Upgrade to 7k Jack [-JA13] Rear Trailer Support Jacks
Frame	4" Channel Frame	[-CM12] 12" OC Crossmembers [-CM16] 16" OC Crossmembers
Cross-Members	2-1/2" Angle Crossmembers on 24" Centers	-
Floor	2" Treated Pine Lumber Deck	[-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck [-FLNF] No Flooring [-SF02] 11ga DP Steel Flr w/ Flushmount D-Rings &16" OC
Fenders	9" x 72" Treadplate Removable Aluminum Fenders	[-FE05] Steel Diamond Plate Fenders
Ramps	Available as an option	[-ATVR] Side Mount ATV Ramps
Stake Pockets	Stake Pockets along both sides (Quantity depends on length)	[-2SPF] 2 Stake Pockets In Front of Trailer
Lights	Available as an option	[-7WPU] 7 Way Plug Upgrade
Wiring	All-Weather Wiring Harness (7-way RV)	-
Paint Color	[K] Primer + Black Powder Coat	[K] Black Powder Coat [1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [P] Primer Only [Z] No Paint No Primer
Tie-Downs	Available as an option	[-TD01] 1 Set of Cargo Tie Down (2) Loops [-DR01] 1 Extra Pair D-Rings
Breakaway System	Electric Breakaway System w/ Charger	-
Sides	Available as an option	[-SG01] 4ft Side Gate (14ft or longer) [-SR01] 22" Solid Metal Sides w/ 2x2 sq tube [-SR02] 2ft Expanded Metal Sides [-SR03] Regular Sides w/Expanded Metal [-SR04] 4ft Expanded Metal Sides [-SR05] Regular Sides w/Solid Metal
Storage	Available as an option	[-TB01] Front Toolbox (Includes 7k jack upgrade) [-TB07] Landscape Toolbox
Top Rail	2" x 2" Top Rail	-
Cargo Winch	Available as an option	[-WN01] Plate for Winch (BP Only) [-WN95] Winch 10k w/ Plate & Battery
Uprights	2" x 2" Removable Side Rail equipped with Ready Rail®	-
Tail	[S] Straight Deck	[B] Dovetail w/ 4' Fold-up Gate [F] Straight Deck with Fold In Gate [G] Straight Deck w/ 4' Fold-up Gate [H] Straight Deck w/ 4' Heavy Duty Fold-up Gate [J] Dovetail w/ 4' Heavy Duty Fold-up Gate [K] Straight Deck w/ Bi-Fold Gate [M] Dovetail w/ Bi-Fold Gate [Q] Straight Deck w/ Split Heavy Duty Gate [R] Straight Deck w/ 5' Slide-in Ramps [X] Dovetail w/ Split Heavy Duty Gate
Other Options	Available as an option	[-GV09] 9,900 G.V.W.R. [-RATL] Ramp Gate Transition Lip [-SAL1] Ship Axles Loose

Models & dimensions

Model	Pull Type	GVWR	Empty Weight	Deck Length	Deck Width	Tongue Length
UL (12')	Bumperpull	7000 lbs	1600 lbs	12	83"	3' 7" (43")
UL (14')	Bumperpull	7000 lbs	1720 lbs	14	83"	3' 7" (43")
UL (16')	Bumperpull	7000 lbs	1830 lbs	16	83"	3' 7" (43")
UL (18')	Bumperpull	7000 lbs	1930 lbs	18	83"	3' 7" (43")
UL (20')	Bumperpull	7000 lbs	2050 lbs	20	83"	3' 7" (43")
