Srd

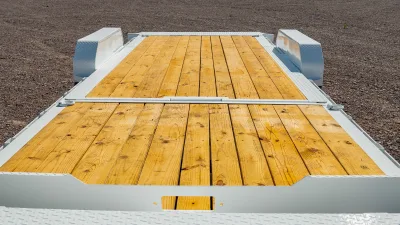

The SRD Split Deck Trailer by Dura Haul combines functionality with ease, designed to make loading and unloading straightforward with its innovative split deck. Crafted with a low-profile height, reinforced wood deck, and multiple tie-down points, this trailer is built to handle a range of loads securely.
- Available Sizes
- 20' / 22'
- Deck Width
- 83"
- Deck Height
- 27"
- GVWR
- 14,000-16,000 lbs
- Approx. Weight - 20'
- 3,704 lbs
- Approx. Weight - 22'
- 4,188 lbs

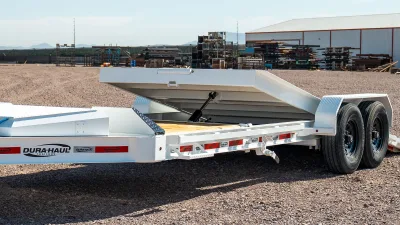

- Deck Design
- Split Deck
- Decking
- 1½" Treated Wood
- Rear Ramp
- 10 Gauge Diamond Plate
- Deck & Loading System: Winch Plate
- Standard
- Front Stop Rail
- Formed Steel
- Hydraulic System
- Hydraulic Cylinder
- Control System
- Valve Control
- Cylinder Lock
- Valve-Controlled Lock

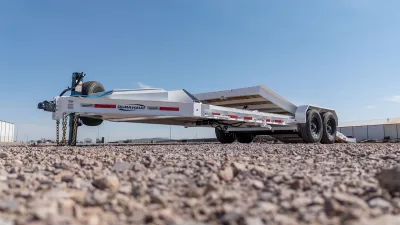

- Frame & Tongue
- Ultra Strong I-Beam Frame

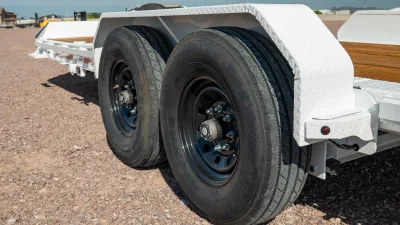

- Axles
- 7K - 8K Lippert tandem axles with electric brakes
- Brakes
- Electric
- Wheels
- 16" 8-Hole
- Tires
- ST235/80R16 LRE
- Hubs
- Quick Lube with Dust Caps
- D-Rings
- ½" - 6 Around Deck
- Rubrail
- Side Rubrail

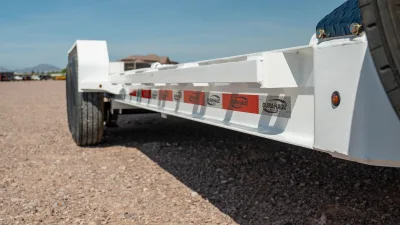

- Stake Pockets
- Side-Mounted
- Load Securement: Winch Plate
- Included
- Hitch
- Adjustable - 5 Positions
- Coupler
- 2-5/16"
- Jack
- 12,000 lb Spring-Loaded Adjustable Leg Crank Jack
- Spare Tire
- Included with Mount
- Fenders
- Bolt-On Fenders
- Lighting
- DOT-Approved LED
- LED Markers
-
- Fender
- Side & Rear - 13
- Wiring
- All-Weather Wiring & Harness
- Safety Tape
- Reflective DOT Safety Tape
- Break-Away System
- Safety Break-Away System with Cable
- Safety Chains
- 2
- Finish
- Powder Coat Superior Paint Finish
- Weight
- 3,704 - 4,188 lbs
- Width
- 83 in
- Length
- 20 - 22 ft
- Ramp Type
- Gravity Tilt
Spec sheets & brochures
Standard features
- 83" Wide Deck
- Multiple Tie-Down Points
- 1½" Treated Wood Decking
- 10 gauge diamond plate rear ramp
- Ultra Strong I-Beam Frame
- 7K - 8K Lippert Axles
- Formed Front Stop Rail
- Rubrail & Stake Pockets
- Safety Break-Away System
