PJ Trailers · Dump Trailers

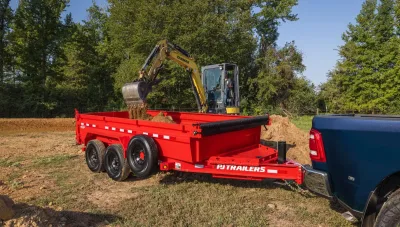

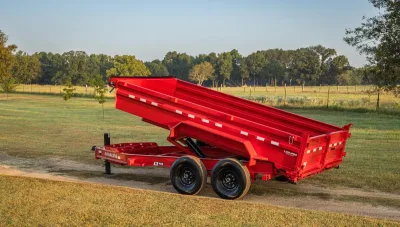

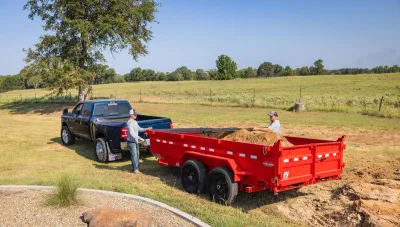

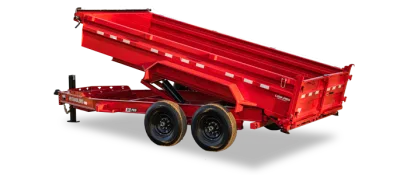

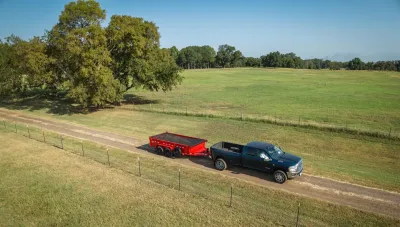

14K Low-Profile Dump PRO Model DL

If you’re a pro, then it’s time to start hauling like one, say hello to the 14K Low-Profile Dump PRO Trailer (DL).

It’s tougher. It’s stronger. It’s sturdier. With a heavy-duty 7-gauge floor and seamless I-beam design, the DL is engineered around the needs of professionals and for those transporting large amounts of material or equipment. And while it’s built to handle heavy-duty tasks, it’s also packed with convenient features that make your life easier such as an ultra-low profile deck and accessible slide-in channel ramps.

Bed Width: 83"
Bed Lengths: 12' to 16'
GVWR: 15,400 lbs
Load Capacity: 11,150 to 11,800 lbs

See PJ Trailers in stock Request a quote

Spec sheets & brochures

Spec Sheet PDF · 1.1 MB View Color Options PDF · 656 KB

Standard features

Feature	Standard	Available options
Axles	[72BS] (2) 7,000# Electric / Spring	[72BD] (2) 7,000# Electric / Drop Axle [92BS] (2) 7,000# w/14 Ply LR-G Tires Electric / Spring [92BD] (2) 7,000# w/14 Ply LR-G Tires Electric / Drop Axle [Y2BS] (2) 7,000# w/215/75R17.5 LR-H Singles Electric / Spring
Suspension	6-Leaf Slipper Spring Suspension	-
Tongue	8" x 10 lb. Formed I-beam Tongue	-
Coupler	[J] BP 2-5/16" Adjustable- Demco EZ-Latch	[P] 3" Pintle Eye - Channel-Mount (20,000 lb.) [R] GN 2-5/16" Round (25,000 lb.) [S] GN 2-5/16" Square (25,000 lb.) [T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6-Hole Channel Bracket
Jack	Drop Leg Jack (12,000 lb.)	[-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA05] 1 Hydraulic Jack (BP Only) [-JA06] 2 Hydraulic Jacks (GN Upgrade) [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only)
Frame	8" x 10 lb. Formed I-Beam Main Frame	[-CM12] 12" OC Crossmembers
Cross-Members	3” Channel Crossmembers 16” oc	-
Floor	7ga. Steel Bed	-
Fenders	1/8" Treadplate Steel Fenders	-
Ramps	6' 5" Slide-In Channel Ramps	-
Stake Pockets	Stake Pockets on Both Sides (Quantity Varies by Length)	-
Wiring	All-Weather Wiring Harness (7-way RV)	-
Tires	ST235/80R16 Radial Tires 10 ply (3,520 lbs.)	-
Paint Color	[K] Primer + Black Powder Coat	[1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [B] Primer + Jet Blue Coat (NEW!) [J] Primer + Industrial Green Coat (NEW!) [Y] Primer + Industrial Yellow Coat (NEW!) [G] Primer + Slime Green Coat (NEW!)
Tie-Downs	(4) D-Rings (Welded inside the Box)	[-DR01] 1 Extra Pair D-Rings
Breakaway System	Electric Breakaway System w/ Charger	-
Battery	12V Deep Cycle Battery	[-BYEB] 1 Extra Battery [-BYSL] Solar Battery Charger
Charging System	110V Integrated Trickle Charger	-
Hydraulics	Hydraulic - Power Up/Power Down & Gravity Down	-
Lift Type	Scissor Lift	-
Sides	24" 10ga. UniWall Steel Sides	[-SE24] 24" Side Extensions (Solid)
Stabilizers	Rear Stabilizer Stands	-
Steps	Ultra-Wide Monster Step	-
Storage	Lockable Full Tongue Toolbox (Houses Battery, Pump + Storage)	[-TB02] Top Riser Toolbox [-TB03] Full Size Divided Toolbox Upgrade
Tarp	Roll-up Tarp Kit (Pull Bar) 7' x 20'	-
Cargo Winch	Available as an option	[-WN02] HD GN Winch Plate [-WN04] Gooseneck Winch Plate [-WN12] Winch 12.5K w/Plate & Battery [-WN18] Winch 18K w/HD Plate & Battery
Tail	[T] Split / Spreader Gate	-
Dump Gate	2-Way Gate (Barn Doors & Spreader Gate)	-
Lift Cylinder	5" x 17" Cylinder w/Scissor & 5" x 21" on 16'	-
Other Options	Available as an option	[-DON1] Removable Deck on the Neck (102" Wide 96" Long) [-GV09] 9,900 G.V.W.R.

Models & dimensions

Model	Pull Type	GVWR	Empty Weight	Bed Length	Bed Width	Tongue Length
DL (12')	Bumperpull	15400 lbs	3600 lbs	12	83"	4' 10" (58")
DL (14')	Bumperpull	15400 lbs	3970 lbs	14	83"	4' 10" (58")
DL (16')	Bumperpull	15400 lbs	4250 lbs	16	83"	4' 10" (58")
