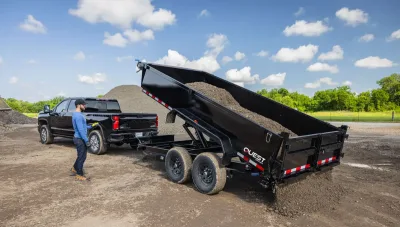

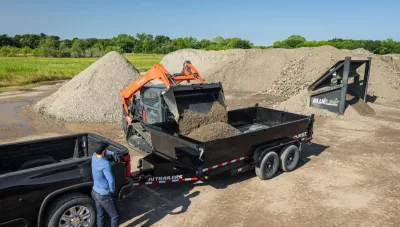

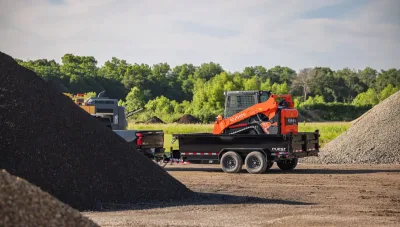

14K Dump Trailer Model D7
Proven PJ Quality. Exceptional Value.
The D7 gives you unbeatable value without sacrificing durability. Built with a strong 6-inch channel frame and tongue, it delivers the strength and reliability you need. Priced to fit your budget, this trailer is packed with must-have features, including a hydraulic scissor lift system with power up, power down, and gravity down options, forward self-adjusting brakes, and a heavy-duty adjustable coupler. Whether you’re moving equipment or hauling loose materials, the D7 makes tough jobs simple. It’s built to take on demanding tasks while keeping your work efficient and hassle-free. Discover the outstanding quality and value of the D7 today, and see how it can make your hauling easier.
- Bed Width
- 83"
- Bed Lengths
- 14' to 14'
- GVWR
- 14,000 lbs
- Load Capacity
- 10,340 lbs
Spec sheets & brochures
Standard features
| Feature | Standard | Available options |
|---|---|---|
| Axles | [72BS] (2) 7,000# Electric / Spring |
|
| Suspension | 6-Leaf Slipper Spring Suspension | - |
| Tongue | 6" Channel Tongue | - |
| Coupler | [C] BP 2-5/16" Adjustable |
|
| Jack | 7,000# Top Wind Drop Leg Jack | - |
| Frame | 6" Channel Frame | - |
| Cross-Members | 3" Crossmembers on 16" Centers | - |
| Floor | 10ga. Steel Bed | - |
| Fenders | 1/8" Treadplate Steel Fenders | - |
| Ramps | Slide in Ramps with Integrated Ramp Door | - |
| Stake Pockets | Stake Pockets along both sides (Quantity depends on length) | - |
| Wiring | All-Weather Wiring Harness (7-way RV) | - |
| Tires | 235/80R16 Radial Tires (3,520 lb) | - |
| Spare Tire | Available as an option |
|
| Paint Color | [K] Primer + Black Powder Coat |
|
| Tie-Downs | (4) D-Rings (Welded inside the Box) | - |
| Breakaway System | Electric Breakaway System w/ Charger | - |
| Battery | 12V Deep Cycle Battery |
|
| Charging System | 110V Integrated Trickle Charger | - |
| Gate | Rear Combo Gate (Barn Doors & Spreader Gate) | - |
| Hydraulics | Hydraulic - Power Up/Power Down & Gravity Down | - |
| Lift Type | Scissor Lift | - |
| Sides | 24" 10ga. Steel Sides | - |
| Tail | [S] Straight Deck w/ Rear Slide-in Ramps | - |
| Dump Gate | 2-Way Gate (Barn Doors & Spreader Gate) | - |
| Lift Cylinder | 5" x 17" Cylinder w/Scissor Lift | - |
| Other Options | Available as an option |
|
Models & dimensions
| Model | Pull Type | GVWR | Empty Weight | Payload Capacity | Bed Length | Bed Width | Tongue Length |
|---|---|---|---|---|---|---|---|
| D7 (14') | Bumperpull | 14000 lbs | 3660 lbs | 10340 lbs | 14 | 83" | 47-1/2" |
We carry PJ Trailers
Want this PJ Trailers 14K Dump Trailer (D7)? Check what we have on the lot right now, or ask us to order the exact configuration you need.
