Dura-Haul · Dump Trailers
DKL-2S

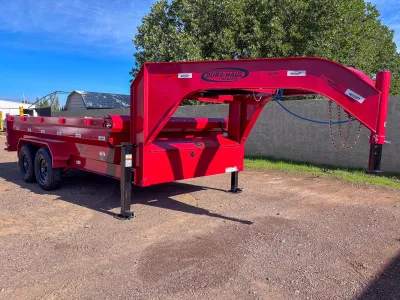

The DKL 7' x 14' or 7' x 16' HD LOW PRO DUMP GN LOW SIDE offers superior maneuverability and loading ease, making it a dependable choice for versatile tasks.
- Available Sizes
- 14' / 16'
- Capacity
- 8.45-9.8 yd³
- GVWR
- 14,000-16,000 lbs
- General Specifications: Deck Height
- 27"
- General Specifications: Top Box Width
- 91"

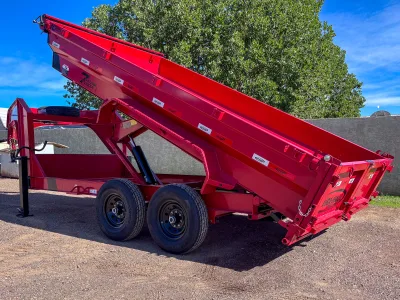

- Frame
- 8" Ultra Strong I-Beam
- Flooring
- 7-Gauge Smooth Plate
- Bed Cross-Members
- 3" Channel - 16" OC
- Side Height
- 24"
- Sides
- Fully Formed 10-Gauge Engineered Sides
- Top Rail
- 10-Gauge - 2.75" x 4.25"
- Frame & Body: Top Box Width
- 91"

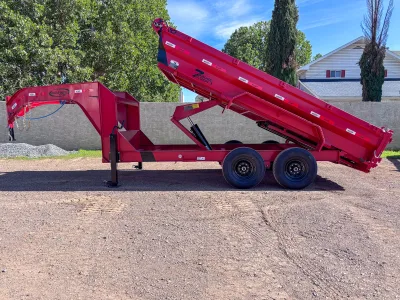

- Lift System
- Heavy-Duty Hydraulic Scissor Lift
- Hydraulic Equipment
-
- Pump
- Battery
- Charger & Remote Control
- Toolbox
- Lockable Toolbox
- Loading: Deck Height
- Extra-Low 27"
- Ramps
- HD Quick Pull Ramps - 6'3" Long
- Rear Stabilizer
- Rear Easy Stabilizer

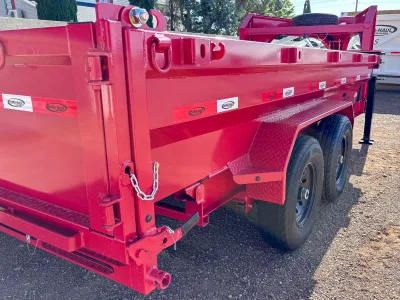

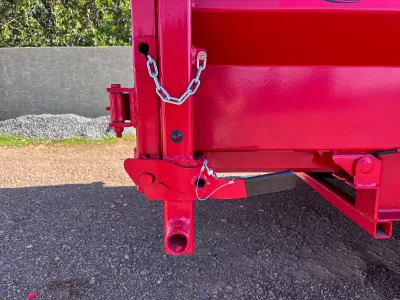

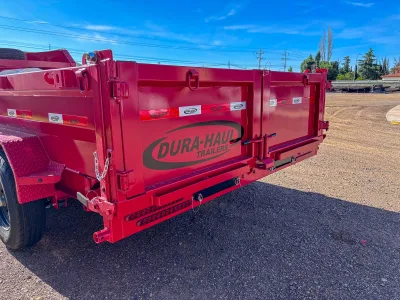

- Rear Gate
- Adjustable Rear Spreader Gate

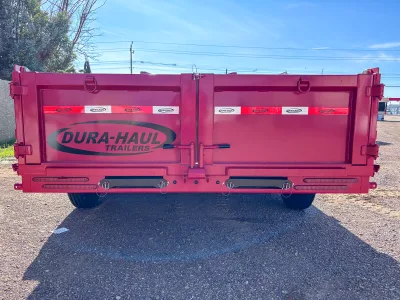

- Doors
- Barn Doors
- Gate Handles
- Roadside & Curbside
- Door Locking System
- Twix Door Locking System
- Open Door Safety
- Open Door Safety Locks

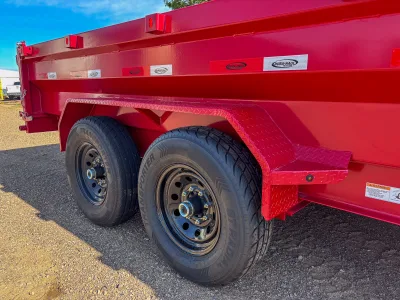

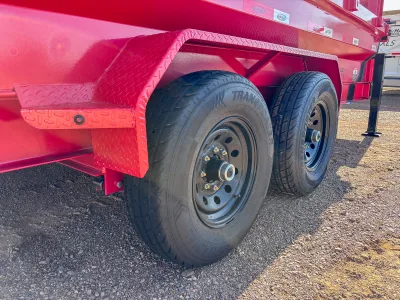

- Axles, Brakes & Suspension: Axles
- 7,000 or 8,000 lb Tandem
- Brakes
- Electric Brakes
- Suspension
- Multi-Leaf Spring with Equalizer
- Tires - 7K
- ST235/80R16 LRE - 10 Ply
- Tires - 8K
- ST235/80R16 LRE - 14 Ply
- Wheels
- 16" 8-Hole
- Hubs
- Quick-Lube Hubs & Dust Caps
- Interior D-Rings
- (4) 5/8"
- Exterior D-Rings
- (6) 1/2"
- 14' Extension Pockets
- 15
- 16' Extension Pockets
- 17
- Tarp System
- Tarp and Cover
- Tarp Width
- 91"
- Tarp Operation
- Crank Roller Style
- Rear Securement
- Rear Rod Tarp Hooks
- Coupler
- 2-5/16" Adjustable Coupler - 5 Positions
- Jack
- 12,000 lb Spring-Loaded Adjustable Leg Crank Jack
- Safety Chains
- 2
- Side Step
- Built-In
- Fenders
- Diamond Plate
- Spare Tire Mount
- Included
- Lubrication
- Grease Zerk
- Wiring
- All-Weather Wiring & Harness
- Safety Break-Away
- System with Cable
- LED Markers
-
- Fender
- Side & Rear - (11) DOT Approved
- Safety Tape
- Reflective DOT Safety Tape
- Finish
- Superior Powder Coat Paint Finish
- Color
- Optional
- Available Options: Axles
- Optional
- Electric Tarp
- Optional
- Solar Panel
- Optional
- Hydraulic Jack
- Optional
- Spare Tire
- Optional
- Width
- 91 in
- Bed Height
- 2 - 4 ft
- Bed Length
- 14-16 ft
- Hoist
- Scissor Lift
- Axles
- Tandem 7K-10K
Spec sheets & brochures
Standard features
- 27" Low Deck
- 6'3" HD Quick Pull Ramps
- Heavy-Duty Hydraulic Scissor Lift
- 7K or 8K Tandem Axles
- 8" Ultra Strong I-Beam Frame
- Multi-Leaf Spring Suspension with Equalizer
- Twix Door Locking System
- 7-Gauge Smooth Plate Floor
- Adjustable Spreader Gate & Barn Doors
Models & dimensions
| Size | Axles | Capacity | GVWR | Weight |
|---|---|---|---|---|
| 14' | 7K-8K | 8.45 yd³ | 14,000-16,000 lbs | 4,740 lbs |
| 16' | 7K-8K | 9.8 yd³ | 14,000-16,000 lbs | 4,960 lbs |
