Dura-Haul · Dump Trailers
DRF-2S
The fold down sides dump trailer provides unmatched versatility, allowing for easy side loading and unloading, perfect for efficient material handling.
- Available Sizes
- 8' x 14' / 8' x 16'
- Capacity
- 8.45-9.8 yd³
- GVWR
- 14,000-16,000 lbs
- General Specifications: Side Height
- 24"

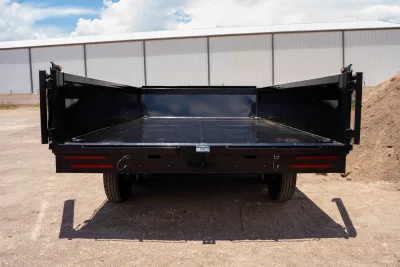

- General Specifications: Deck Height
- 34½"
- General Specifications: Tarp Width
- 96"

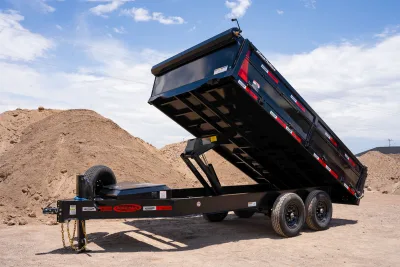

- Frame
- 10" Ultra Strong I-Beam

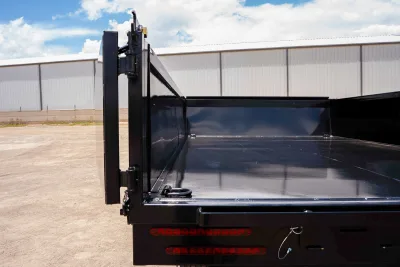

- Flooring
- 10-Gauge Smooth Plate
- Bed Cross-Members
- 3" Channel - 16" OC
- Frame & Body: Side Height
- 24"

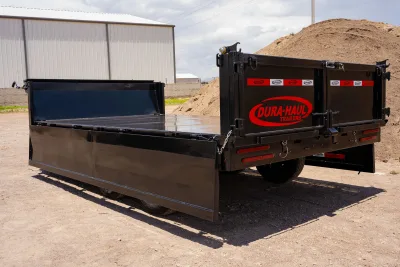

- Sides
- Fully Formed Fold-Down Sides
- Side Construction
- 12-Gauge HSS 3" x 2" / 11-Gauge

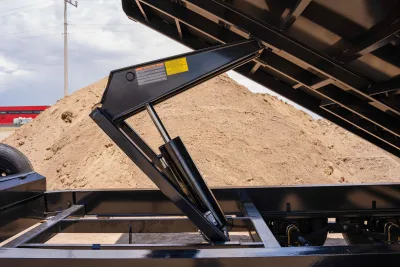

- Lift System
- Heavy-Duty Hydraulic Scissor Lift
- Hydraulic Equipment
-
- Pump
- Battery
- Charger & Remote Control
- Toolbox
- Lockable Toolbox
- Loading: Deck Height
- Easy-Load 34½"

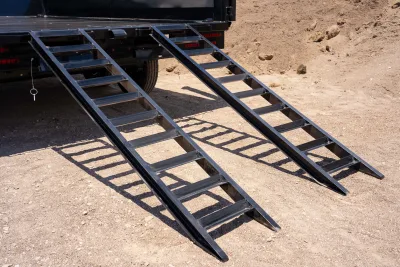

- Ramps
- HD Quick Pull Ramps - 7' Long
- Rear Gate
- Adjustable Rear Spreader Gate
- Doors
- Barn Doors
- Gate Handles
- Roadside & Curbside
- Door Locking System
- Twix Door Locking System
- Open Door Safety
- Open Door Safety Locks

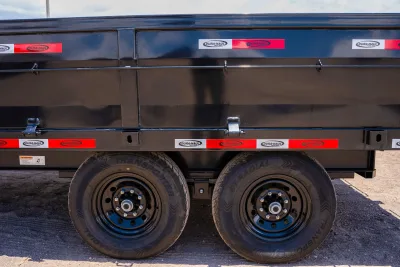

- Axles, Brakes & Suspension: Axles
- 7,000 or 8,000 lb Tandem
- Brakes
- Electric Brakes
- Suspension
- Multi-Leaf Spring with Equalizer
- Tires - 7K
- ST235/80R16 LRE - 10 Ply
- Tires - 8K
- ST235/80R16 LRE - 14 Ply
- Wheels
- 16" 8-Hole
- Hubs
- Quick Lube Hubs & Dust Caps
- Interior D-Rings
- (4) 5/8"
- Exterior D-Rings
- (2) 1/2"
- Tarp System
- Tarp and Cover
- Tarp & Cover: Tarp Width
- 96"
- Tarp Operation
- Crank Roller Style
- Rear Securement
- Rear Rod Tarp Hooks
- Coupler
- 2-5/16" Adjustable Coupler - 5 Positions
- Jack
- 12,000 lb Spring-Loaded Adjustable Leg Crank Jack

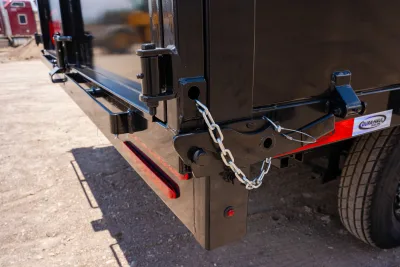

- Safety Chains
- 2
- Lubrication
- Grease Zerk
- Equipment & Convenience: Spare Tire
- Spare Tire and Mount
- Wiring
- All-Weather Wiring & Harness
- Safety Break-Away
- System with Cable
- LED Markers
-
- Fender
- Side & Rear - (9) DOT Approved
- Safety Tape
- Reflective DOT Safety Tape
- Finish
- Superior Powder Coat Paint Finish
- Color
- Optional
- Available Options: Axles
- Optional
- Solar Panel
- Optional
- Hydraulic Jack
- Optional
- Available Options: Spare Tire
- Optional
- Width
- 96 in
- Bed Height
- 2 ft
- Bed Length
- 14 - 16 ft
- Hoist
- Scissor Lift
- Axles
- Tandem 7K-8K
Spec sheets & brochures
Standard features
- 34½" Deck Height
- 24" High Fold-Down Sides
- 7' HD Quick Pull Ramps
- Heavy-Duty Hydraulic Scissor Lift
- 7K or 8K Tandem Axles
- Twix Door Locking System
- 10" Ultra Strong I-Beam Frame
- 10-Gauge Smooth Plate Flooring
- Roadside & Curbside Handles
Models & dimensions
| Size | Axles | Capacity | GVWR | Weight |
|---|---|---|---|---|
| 8' x 14' | 7K-8K | 8.45 yd³ | 14,000-16,000 lbs | 4,916 lbs |
| 8' x 16' | 7K-8K | 9.8 yd³ | 14,000-16,000 lbs | 5,196 lbs |
