Dura-Haul · Deckover Trailers
Dko-dd

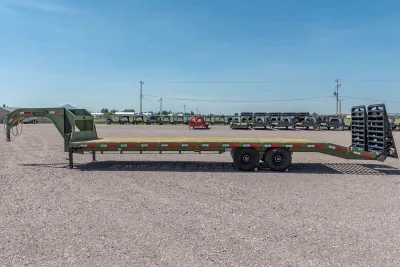

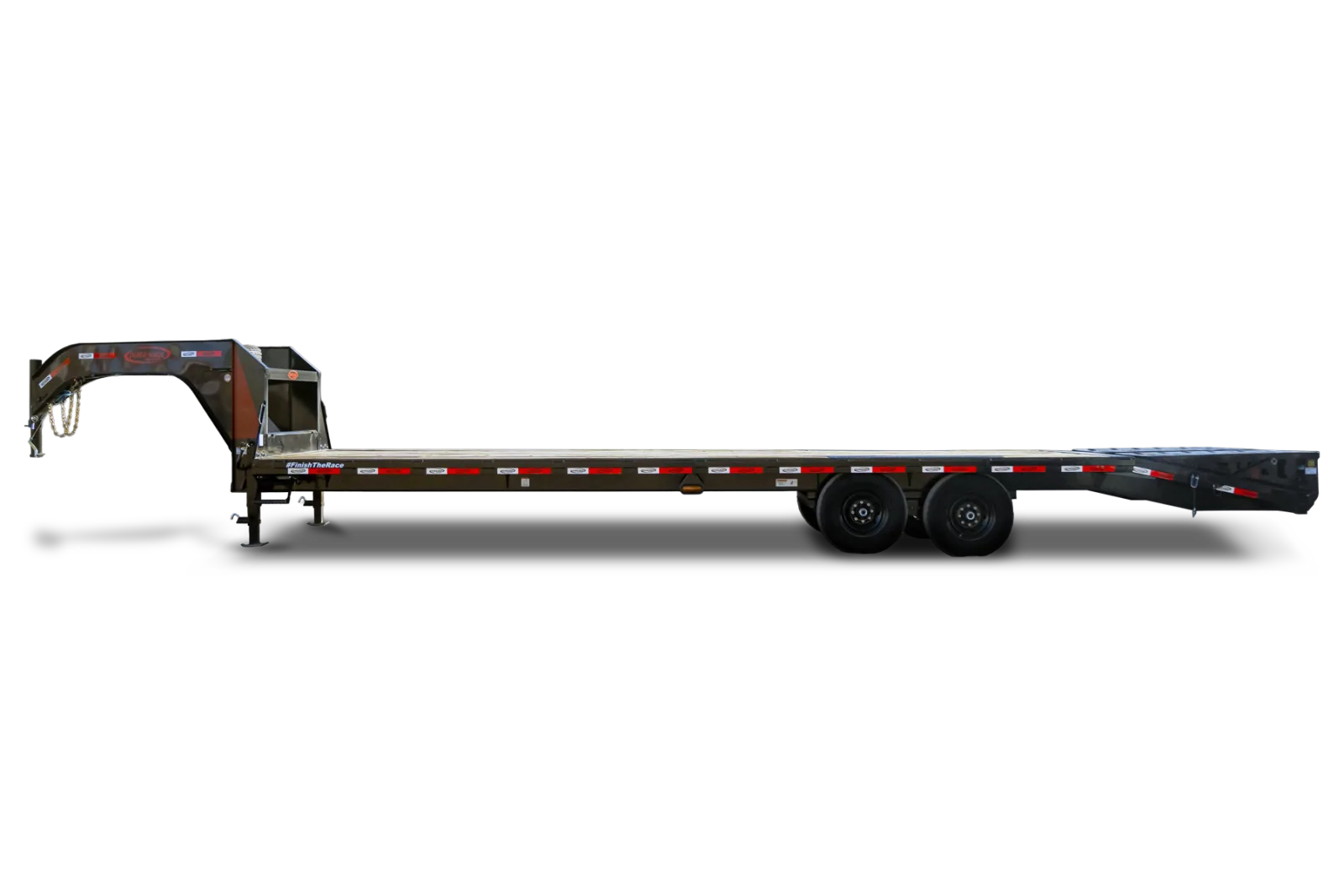

The DKO Deckover Gooseneck Trailer from Dura Haul is engineered for superior strength and enhanced load capacity, making it ideal for transporting heavy equipment and machinery. With a reinforced wood deck and multiple tie-down points, your cargo is secured for every journey.
- Available Sizes
- 20' + 5' / 35' + 5'
- GVWR
- 14,000-24,000 lbs
- Approx. Weight
- 5,308-9,067 lbs
- Deck Configuration

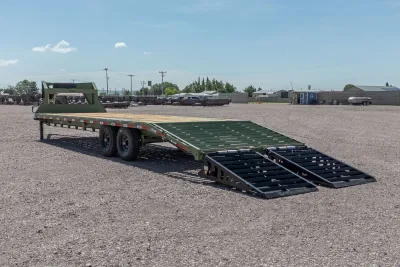

- 5' Dovetail
- General Specifications: Ramp System

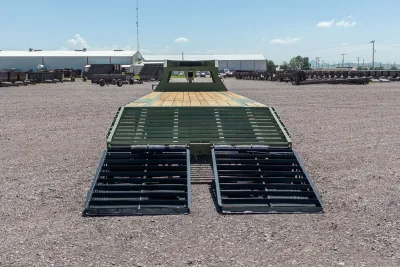

- HD Dura Ramps

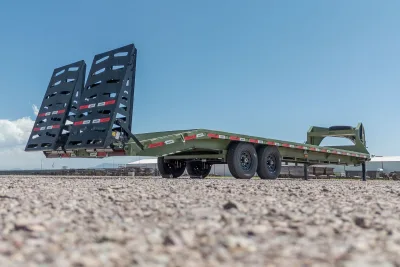

- Frame
- 12" Ultra-Strong I-Beam
- Bed Cross-Members
- 3" Channel - 16" OC
- Decking
- Treated Wood
- Frame & Deck: Dovetail
- 5'
- Frame & Deck: Rubrail
- Side Rubrail
- Frame & Deck: Stake Pockets
- Side-Mounted
- Gooseneck

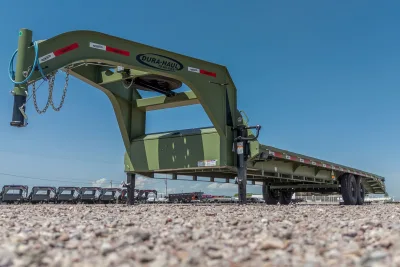

- 12" Engineered Gooseneck
- Coupler
- 2-5/16"
- Coupler Adjustment
- 4 Positions

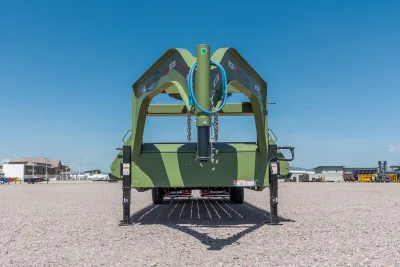

- Leg Crank Jacks
- 2 x 12,000 lb Spring-Loaded Adjustable
- Ramps & Loading: Dovetail
- 5'
- Ramps & Loading: Ramp System
- HD Dura Ramps

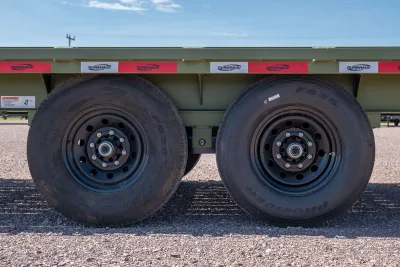

- Axles
- 7,000 / 8,000 / 10,000 / 12,000 lb Tandem
- Brakes
- Electric

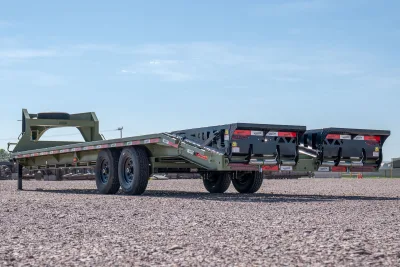

- Suspension
- Multi-Leaf Spring with Equalizer
- Wheels
- 16" 8-Hole
- Tires
- ST235/80R16 LRE - 14 Ply
- Hubs
- Quick-Lube Hubs & Dust Caps
- Tie-Down Points
- Multiple Tie-Down Points
- Load Securement: Rubrail
- Side Rubrail
- Load Securement: Stake Pockets
- Side-Mounted
- Toolbox
- Lockable - 3.5 cu. ft.

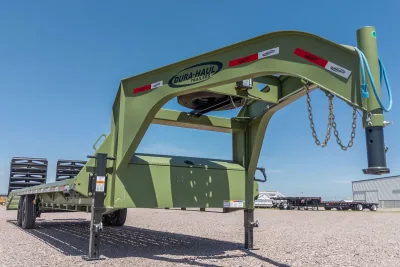

- Spare Tire
- Mounted on Gooseneck
- Step
- Built-In Side Step
- Lighting
- DOT-Approved LED
- LED Markers
- Side & Rear
- Wiring
- All-Weather Wiring & Harness
- Safety Break-Away
- System with Cable & Battery
- Safety Chains
- 2
- Safety Tape
- Reflective DOT Safety Tape
- Finish
- Superior Powder Coat Paint Finish
- Powder Coating
- Dura-Haul Powder Coating Process
- Color
- Optional
- Winch
- Optional
- Hydraulic Axles
- Optional
- Hydraulic Brakes
- Optional
- Deck on Neck
- Optional
- Side Toolboxes
- Optional
- Weight
- 5,308 - 9,067 lbs
- Width
- 102 in
- Length
- 20+5 - 35+5 ft
- Ramp Type
- Dura Ramps
Spec sheets & brochures
Standard features
- 5' Dovetail
- HD Dura Ramps
- Full-Width Deck
- 12" Engineered Gooseneck
- Dual 12,000-lb Jacks
- 12" Ultra-Strong I-Beam Frame
- 7K / 12K Tandem Axles
- Multi-Leaf Spring Suspension
- Spare Tire Mounted on the Neck
We carry Dura-Haul
Want this Dura-Haul Dko-dd? Check what we have on the lot right now, or ask us to order the exact configuration you need.
