Dura-Haul · Deckover Trailers
Dko-sp
The DKO-SP Deckover Straight Deck and Pull Out Ramps delivers maximum deck space, exceptional strength, and reliable loading versatility. Designed for wide or oversized equipment, this straight-deck configuration paired with pull-out ramps provides a smooth, efficient hauling experience for demanding job sites.
- Available Sizes
- 20' / 40'
- GVWR
- 14,000-24,000 lbs
- Approx. Weight
- 4,310-8,533 lbs
- Deck Configuration
- Straight Deck
- Ramp System
- Pull-Out Ramps
- Frame
- 12" Ultra-Strong I-Beam
- Bed Cross-Members
- 3" Channel - 16" OC

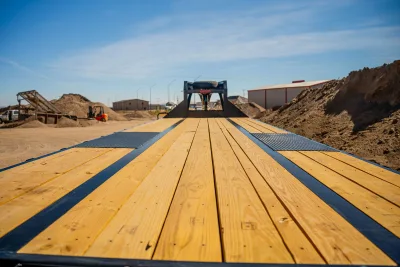

- Decking
- Treated Wood
- Frame & Deck: Rubrail
- Side Rubrail
- Frame & Deck: Stake Pockets
- Side-Mounted

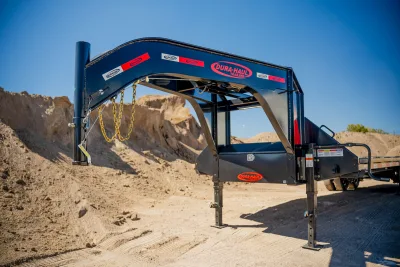

- Gooseneck
- 12" Engineered Gooseneck
- Coupler
- 2-5/16"
- Coupler Adjustment
- 4 Positions

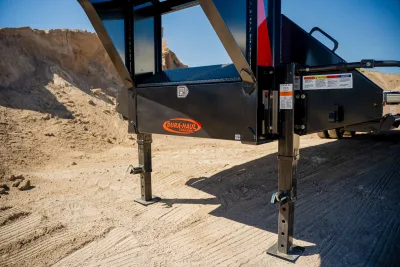

- Leg Crank Jacks
- 2 x 12,000 lb Spring-Loaded Adjustable

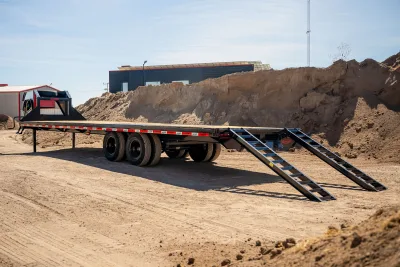

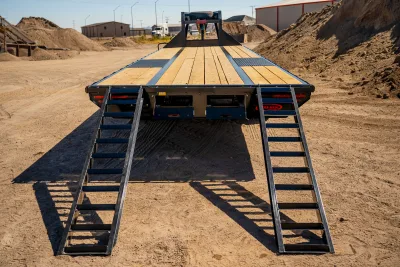

- Ramp Configuration
- Pull-Out Ramps
- Ramps & Loading: Winch
- Optional

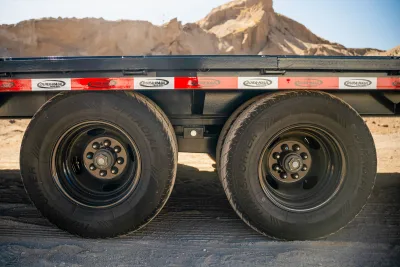

- Axles
- 7,000 / 8,000 / 10,000 / 12,000 lb Tandem
- Brakes
- Electric
- Suspension
- Multi-Leaf Spring with Equalizer
- Wheels
- 16" 8-Hole
- Tires
- ST235/80R16 LRE - 14 Ply
- Hubs
- Quick-Lube Hubs & Dust Caps
- D-Rings
- Included
- Load Securement: Rubrail
- Side Rubrail
- Load Securement: Stake Pockets
- Side-Mounted
- Toolbox
- Lockable - 3.5 cu. ft.

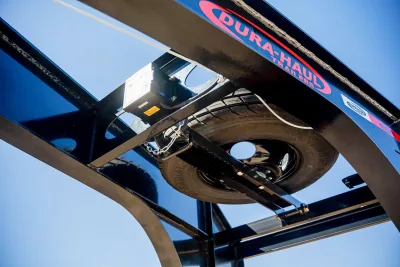

- Spare Tire
- Mounted on Gooseneck
- Step
- Built-In
- Equipment & Storage: Winch
- Optional

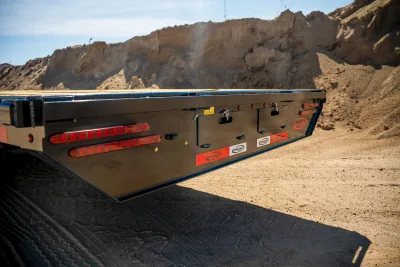

- Lighting
- DOT-Approved LED
- LED Markers
- Side & Rear
- Wiring
- All-Weather Wiring & Harness
- Safety Break-Away
- System with Cable & Battery
- Safety Chains
- 2
- Safety Tape
- Reflective DOT Safety Tape
- Finish
- Superior Powder Coat Paint Finish
- Powder Coating
- Dura-Haul Powder Coating Process
- Color
- Optional
- Available Options: Winch
- Optional
- Hydraulic Axles
- Optional
- Hydraulic Brakes
- Optional
- Deck on Neck
- Optional
- Side Toolboxes
- Optional
- Weight
- 4,310 - 8,533 lbs
- Width
- 102 in
- Length
- 24 - 40 ft
- Ramp Type
- Pull Out
Spec sheets & brochures
Standard features
- 12" Engineered Gooseneck
- Heavy-Duty Jacks
- Full-Width Platform
- Pull-Out Design
- Straight Deck
- 12" Ultra-Strong I-Beam Frame
- 7K / 12K Tandem Axles
- Multi-Leaf Spring Suspension
- Spare Tire & Mount
We carry Dura-Haul
Want this Dura-Haul Dko-sp? Check what we have on the lot right now, or ask us to order the exact configuration you need.
