PJ Trailers · Dump Trailers

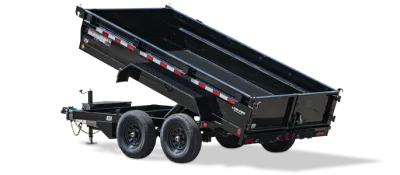

72" Tandem Axle Dump Model D3

You forge ahead and embrace challenge, and sometimes it’s worth giving yourself a break, do it with the light-duty 72" Tandem Axle Dump Trailer (D3).

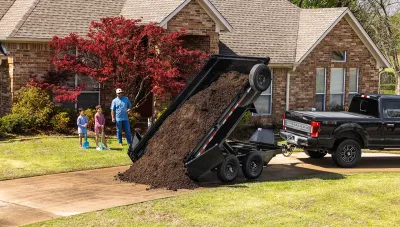

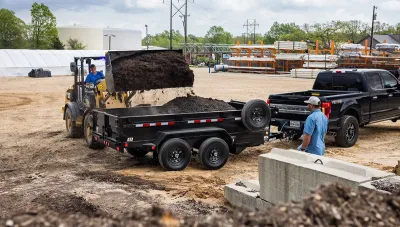

Equipped with a straight ram hydraulic lifting system, the D3 helps you haul and dump mulch, dirt, and gravel with ease. Whatever you encounter, the D3 has the strength and durability you’ll need, on the job, at home, or even the farm. Your back will thank you.

Bed Width: 72"
Bed Lengths: 10' to 12'
GVWR: 9,990 lbs
Load Capacity: 6,970 to 7,240 lbs

See PJ Trailers in stock Request a quote

Spec sheets & brochures

Spec Sheet PDF · 1,013 KB View Color Options PDF · 656 KB

Standard features

Feature	Standard	Available options
Axles	[52BS] (2) 5,200# Electric / Spring	[62BS] (2) 5,200# Electric / Spring With Upgrade to 235/80 R16 on 52k Axles
Suspension	6-Leaf Slipper Spring Suspension	-
Tongue	5" Channel Tongue	-
Coupler	[J] BP 2-5/16" Adjustable- Demco EZ-Latch	[A] BP 2-5/16" Adjustable (14,000 lb.) [P] 3" Pintle Eye - Channel-Mount (21,000 lb.)
Jack	Top Wind Drop Leg Jack (8,000 lb.)	[-JA04] Upgrade to Single 10k Jack (BP Only) [-JA05] 1 Hydraulic Jack (BP Only) [-JA09] Upgrade to Single 10k Jack [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only)
Frame	5" Channel Frame	[-CM12] 12" OC Crossmembers
Cross-Members	3" Channel Crossmembers on 16" Centers	-
Floor	10ga. Steel Bed	-
Fenders	1/8" Treadplate Steel Fenders	-
Ramps	Available as an option	[-RA01] Ramp
Stake Pockets	Stake Pockets along both sides (Quantity depends on length)	-
Wiring	All-Weather Wiring Harness (7-way RV)	-
Tires	ST225/75R15 Radial Tires 8 ply (2,540 lbs.)	-
Paint Color	[K] Primer + Black Powder Coat	[1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [B] Primer + Jet Blue Coat (NEW!) (Texas Only) [J] Primer + Industrial Green Coat (NEW!) (Texas Only) [Y] Primer + Industrial Yellow Coat (NEW!) (Texas Only) [G] Primer + Slime Green Coat (NEW!) (Texas Only)
Tie-Downs	Available as an option	[-DR01] 1 Extra Pair D-Rings
Breakaway System	Electric Breakaway System w/ Charger	-
Battery	12V Deep Cycle Battery	[-BYEB] 1 Extra Battery [-BYSC] Solar Battery Charger
Charging System	110V Integrated Trickle Charger	-
Hydraulics	Hydraulic - Power Up/Power Down & Gravity Down	-
Sides	20" 10ga. UniWall Steel Sides	[-SE18] 18" Side Extensions (Solid) [-SW04] 4ft Tall Sides
Storage	Available as an option	[-TB03] Full Size Divided Toolbox Upgrade
Tarp	Mounting Brackets for Roll-up Tarp	[-TK01] Tarp Kit
Cargo Winch	Available as an option	[-WN04] Gooseneck Winch Plate
Tail	[S] Split Gate	[T] Split / Spreader Gate
Dump Gate	Barn Door Gate	-
Lift Cylinder	4" x 30" Single Push Cylinder	-
Other Options	Available as an option	[-GV09] 9,900 G.V.W.R. [-RS01] Rear Support Stands
