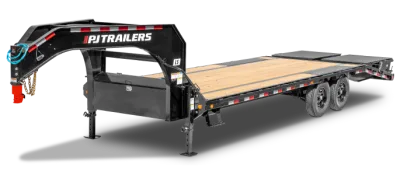

Low-Pro Flatdeck With 7K Singles Model LS

Designed for the needs of contractors, farmers, and equipment haulers, the Low-Pro Flatdeck With 7K Singles Trailer (LS) delivers maximum load surface and strength without sacrificing reliability.

Featuring a 15,680 lbs G.V.W.R., the LS is built for the heavy-duty hauling. No matter what you’re hauling, the LS will help you get there with its lifelong LED lights, treated floor, dual jacks, and gooseneck coupler.

Deck Width: 102"
Deck Lengths: 20' to 40'
GVWR: 15,680 lbs
Load Capacity: 8,920 to 11,120 lbs

See PJ Trailers in stock Request a quote

Spec sheets & brochures

Spec Sheet PDF · 852 KB View Color Options PDF · 656 KB

Standard features

Feature	Standard	Available options
Axles	[72BS] (2) 7,000# Electric / Spring	[92BS] (2) 7,000# w/14 Ply LR-G Tires Electric / Spring
Suspension	6-Leaf Slipper Spring Suspension	-
Tongue	12" x 14 lb. I-beam Tongue	-
Coupler	[Q] GN 2-5/16" Square Demco EZ Latch (30,000 lb.) w/ Toolbox	[P] 3" Pintle Eye - Face-Mount (36,000 lb.) w/ Toolbox
Safety Chains	3/8" Grade 70 Safety Chain w/Clevis hook (2 each)	-
Jack	Spring Loaded Drop Leg Jack (12,000 lb.)	[-JA01] Dual HD 25k Jost Jacks [-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA06] 2 Hydraulic Jacks (GN Upgrade) [-JA08] Dual 10k Jacks at Rear of Deck
Frame	12" x 14 lb. I-Beam Main Frame (Pierced)	[-FR19] 19 lb. I-Beam Main Frame, Riser & Neck [-FR22] 22 lb. I-Beam Main Frame [-CM12] 12" OC Crossmembers [-FRFB] Frame Bridging [-FRTG] TwistGuard™ (Under 30')
Cross-Members	3” Channel Crossmembers 16” oc	-
Floor	2" Treated Pine Lumber Deck	[-BWFT] Blackwood Pro Tail (Excluding Deck) [-FLWD] Add Wood to Dovetail [-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck (Excluding Tail) [-FLRO] Rough Oak Floor [-FLNF] No Flooring [-SF01] 11ga (1/8") DP Steel Floor w/ Flushmount D-Rings & 12" OC [-SF04] 3/16" DP Steel Floor w/ Flushmount D-Rings & 12" OC [-SF05] ¼" DP Steel Floor w/ Flushmount D-Rings & 12" OC
Fenders	Diamond Plate Low-Pro Fenders	-
Ramps	8' Slide-In Channel Ramps	[-NRNP] No Ramps No Ramp Pockets
Stake Pockets	24" Stake Pocket Spacing	-
Lights	Available as an option	[-LT10] GN Light Bar w/ 4 Lights (GN Only) [-SL02] 2 Extra Side Marker 3/4" Bullet Lights, 1 Per Side [-LT11] Auxiliary Work Light Package (GN Only)
Wiring	All-Weather Wiring Harness (7-way RV)	-
Tires	ST235/80R16 Radial Tires 10 ply (3,520 lbs.)	-
Paint Color	[K] Primer + Black Powder Coat	[1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [B] Primer + Jet Blue Coat (NEW!) [J] Primer + Industrial Green Coat (NEW!) [Y] Primer + Industrial Yellow Coat (NEW!) [G] Primer + Slime Green Coat (NEW!)
Rubrail	Rubrail & Stake Pockets	-
Tie-Downs	Available as an option	[-RT01] 1 Pair Weld-On Ratchets [-RTST] 4" Ratchets every 4ft w/ Slide Track [-2RST] 4" Ratchets every 4ft w/ Slide Track (BOTH SIDES) [-UFTD] Under Frame Tie Down Flat [-UFT2] Under Frame Tie Down Flat on Both Sides [-DR01] 1 Extra Pair D-Rings [-DR21] 1 Extra Pair Flushmount D-Rings
Breakaway System	Electric Breakaway Kit w/ Charger	-
Battery	Available as an option	[-BYBC] 1 Extra Battery Charger 12V [-BYSL] Solar Battery Charger
Steps	Monster Steps on Both Sides	-
Storage	Available as an option	[-GNCH] GN Lockable Chain Holder [-SB02] 1 Side-mount Toolbox 45" x 14" [-SB03] 1 Side-mount Toolbox 72" x 14" [-TB02] Top Riser Toolbox
Cargo Winch	Available as an option	[-WN02] HD GN Winch Plate [-WN03] Winch Plate w/ Welded Receiver Hitch [-WN04] Gooseneck Winch Plate [-WN12] Winch 12.5K w/Plate & Battery [-WN18] Winch 18K w/HD Plate & Battery [-WN95] Winch 10k w/ Plate & Battery [-WNRR] Roller on Rear of Deck for Winch Cable
Pipe Chain Spools	Pipe Spools	-
Tail	[S] Straight Deck w/ 8' Slide-in Ramps	[F] 5' Dovetail w/ 2 Flip-over Ramps [W] 5' Dovetail w/ 2 Flip-over Monster Ramps [Z] 5' Dovetail w/ Power Tail (Pat. Pend. TX Only)
Other Options	Available as an option	[-DON1] Removable Deck on the Neck (102" Wide 96" Long) [-DON3] Rem Deck on Neck w/SlideTrk & 2 Ratchets(102"x96") [-MF01] Mud Flaps Single Wheel Deckover [-RASA] Ramp Support Arms [-RAWR] Hinged Side Mount Wood Rack

Models & dimensions

Model	Pull Type	GVWR	Empty Weight	Payload Capacity	Deck Length	Deck Width
LS (20')	Gooseneck	15680 lbs	4560 lbs	11120 lbs	20	102"
LS (22')	Gooseneck	15680 lbs	4775 lbs	10905 lbs	22	102"
LS (24')	Gooseneck	15680 lbs	4991 lbs	10689 lbs	24	102"
LS (26')	Gooseneck	15680 lbs	5222 lbs	10458 lbs	26	102"
LS (28')	Gooseneck	15680 lbs	5440 lbs	10240 lbs	28	102"
LS (30')	Gooseneck	15680 lbs	5660 lbs	10020 lbs	30	102"
LS (32')	Gooseneck	15680 lbs	5878 lbs	9802 lbs	32	102"
LS (34')	Gooseneck	15680 lbs	6099 lbs	9581 lbs	34	102"
LS (36')	Gooseneck	15680 lbs	6324 lbs	9356 lbs	36	102"
LS (38')	Gooseneck	15680 lbs	6540 lbs	9140 lbs	38	102"
LS (40')	Gooseneck	15680 lbs	6760 lbs	8920 lbs	40	102"
