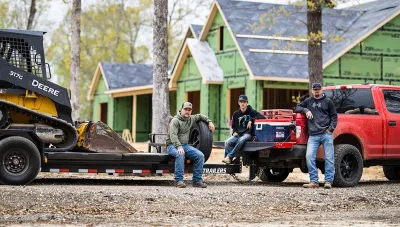

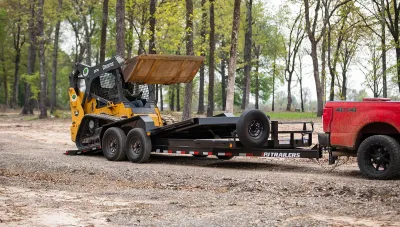

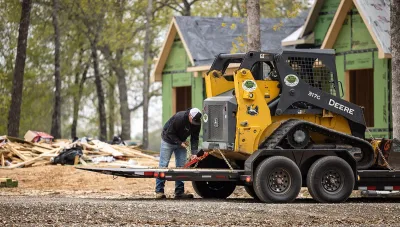

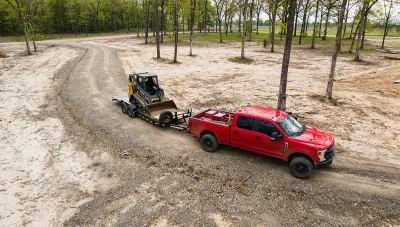

HD Equipment Tilt 6" Channel Model TJ

Are you driven to conquer the challenges of today, tomorrow, and every day after? Then it’s time to haul with the strong and versatile HD Equipment Tilt 6" Channel Trailer (TJ).

Engineered and constructed to safely and securely haul heavy-duty low-profile equipment with its 8K torsion axles and 12-degree tilt angle, the TJ features a 6" channel frame and tongue for superior hauling strength and long-term durability. And with its diamond plated fenders, it’s ready to deal with whatever nicks and dents you encounter on the road of life.

Deck Width: 82"
Deck Lengths: 20' to 24'
GVWR: 16,000 lbs
Load Capacity: 11,520 to 12,000 lbs

See PJ Trailers in stock Request a quote

Spec sheets & brochures

Spec Sheet PDF · 712 KB View Color Options PDF · 656 KB

Standard features

Feature	Standard	Available options
Axles	[82BT] (2) 8,000# Oil Bath w/14 Ply LR-G Tires Electric / Torsion	[B2BT] (2) 8,000# Oil Bath Axles, 235/80 LR-E Tires Electric / Torsion [K2BT] (2) 8,000# Oil Bath w/215/75R17.5 LR-H Singles Electric / Torsion
Suspension	Torsion Suspension	-
Tongue	6" Channel Tongue	-
Coupler	[T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6 hole Channel Bracket	[P] 3" Pintle Eye - Channel-Mount (20,000 lb.) [Q] GN 2-5/16" Square Demco EZ Latch (30,000 lb.) w/ Toolbox [R] GN 2-5/16" Round (25,000 lb.) w/ Toolbox [S] GN 2-5/16" Square (25,000 lb.) w/ Toolbox [T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6-Hole Channel Bracket
Safety Chains	5/16" Grade 70 Safety Chain w/Clevis hook (2 each)	-
Jack	Drop Leg Jack (10,000lb)	[-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA04] Upgrade to Single 10k Jack (BP Only) [-JA05] 1 Hydraulic Jack (BP Only) [-JA06] 2 Hydraulic Jacks (GN Upgrade) [-JA15] Upgrade to Dual 10k Jacks [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only) [-JA18] Dual 2-Speed Jacks (BP Only) [-JA19] 2 Hydraulic Jacks for BP [-JA21] Dual Jacks for BP
Frame	6" Channel Frame	[-CM12] 12" OC Crossmembers
Cross-Members	3" Channel Crossmembers on 16" Centers	-
Bump Rail	Front Bump Rail	-
Floor	2" Treated Pine Lumber Deck	[-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck [-FLRO] Rough Oak Floor [-FLNF] No Flooring [-SF01] 11ga (1/8") DP Steel Floor w/ Flushmount D-Rings & 12" OC [-SF04] 3/16" DP Steel Floor w/ Flushmount D-Rings & 12" OC
Fenders	10" x 72" Treadplate Removable Steel Fenders	[-FE01] 1/4" DP HD Weld on Fenders Tandem Axle [-FE02] 1/4" DP HD Weld on Fenders Triple Axle [-FE04] Weld on Fenders
Stake Pockets	Stake Pockets along both sides (Quantity depends on length)	[-2SPF] 2 Stake Pockets In Front of Trailer
Lights	Available as an option	[-LT10] GN Light Bar w/ 4 Lights (GN Only)
Wiring	All-Weather Wiring Harness (7-way RV)	-
Tires	ST235/80R16 Radial Tires 14 ply (4,080 lbs.)	-
Paint Color	[K] Primer + Black Powder Coat	[K] Black Powder Coat [1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [P] Primer Only [Z] No Paint No Primer
Tilt Deck Dimensions	82" Wide Tiltable Deck	-
Rubrail	2" Rubrail	-
Tie-Downs	(6) Flushmount D-rings	[-DR01] 1 Extra Pair D-Rings [-DR21] 1 Extra Pair Flushmount D-Rings
Breakaway System	Electric Breakaway System w/ Charger	-
Battery	Available as an option	[-BYSC] Solar Battery Charger
Hydraulics	Hydraulic - Cushioned Gravity tilt	[-PUGD] Power Up/Down & Gravity Down Upgrade [-PUPD] Power Up/Down Hydraulics
Storage	Available as an option	[-GNC2] 2 GN Lockable Chain Holders [-GNCH] GN Lockable Chain Holder [-TB02] Top Riser Toolbox [-TB03] Full Size Divided Toolbox Upgrade [-TB05] Front Toolbox [-TB06] Locking Lid Over Tongue
Cargo Winch	Available as an option	[-WN01] Plate for Winch (BP Only) [-WN02] HD GN Winch Plate [-WN03] Winch Plate w/ Welded Receiver Hitch [-WN04] Gooseneck Winch Plate [-WN12] Winch 12.5K w/Plate & Battery [-WN18] Winch 18K w/HD Plate & Battery [-WN95] Winch 10k w/ Plate & Battery [-WNFR] Roller on Front of Deck for Winch Cable
Pipe Chain Spools	Pipe Spools	-
Tilt Deck Angle	12°	-
Tail	[T] 16' Tilt Deck	-
Lift Cylinder	3" x 16" Cylinder	-
Other Options	Available as an option	[-FR01] Fork Rack [-GV09] 9,900 G.V.W.R. [-TRA1] 1/2 x 1/2 Square Traction Bars

Models & dimensions

Model	Pull Type	GVWR	Empty Weight	Deck Length	Deck Width	Tongue Length
TJ (20')	Bumperpull	16000 lbs	4000 lbs	20	82"	5' .5" (60.5")
TJ (22')	Bumperpull	16000 lbs	4250 lbs	22	82"	5' .5" (60.5")
TJ (24')	Bumperpull	16000 lbs	4480 lbs	24	82"	5' .5" (60.5")
