PJ Trailers · Tilt Trailers

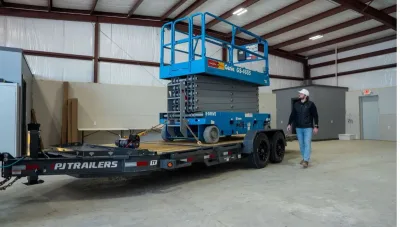

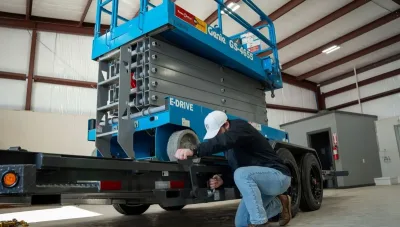

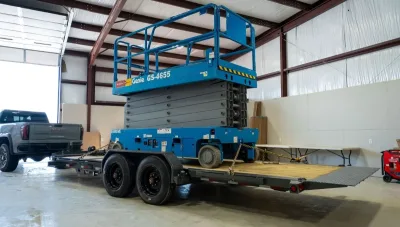

8" I-Beam Equipment Tilt Model TY

Push your hauling limits further with the TY I-Beam Tilt Trailer, utilizing a 12-degree tilt and a strong I-Beam frame for superior capacity and versatility.

Engineered for professional-grade performance and high-capacity hauling, the PJ Trailers TY I-Beam Tilt Trailer is built to support your heaviest machines and attachment-heavy setups with confidence. With its ultra-strong I-Beam frame, smooth 12-degree tilt geometry, and integrated features like fork pockets and a full tongue toolbox, it provides the structural strength and organization needed for repeated loading cycles. For those who are passionate about their work and require a trailer that reduces compromise in daily operations, the TY is the ultimate tool for conquering the jobsite.

Deck Width: 83"
Deck Lengths: 20' to 24'
GVWR: 15,400 lbs
Load Capacity: 10,900 to 11,200 lbs

See PJ Trailers in stock Request a quote

Spec sheets & brochures

Spec Sheet PDF · 1.5 MB View Color Options PDF · 656 KB

Standard features

Feature	Standard	Available options
Axles	[72BT] (2) 7,000# Electric / Torsion	[82BT] (2) 8,000# Oil Bath w/14 Ply LR-G Tires Electric / Torsion [92BT] (2) 7,000# w/14 Ply LR-G Tires Electric / Torsion [K2BT] (2) 8,000# Oil Bath w/215/75R17.5 LR-H Singles Electric / Torsion [Y2BT] (2) 7,000# w/215/75R17.5 LR-H Singles Electric / Torsion
Suspension	Torsion Suspension	-
Tongue	8" I-beam Tongue	-
Coupler	[J] BP 2-5/16" Adjustable (14,000lb)	[P] 3" Pintle Eye - Channel-Mount [T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6-Hole Channel Bracket
Safety Chains	3/8" Grade 70 w/ Safety Latch Hook (2 ea)	-
Jack	12,000# Drop-Leg Jack (Side Wind)	[-JA05] 1 Hydraulic Jack (BP Only)
Frame	8" x 10 lb. I-Beam Main Frame	[-CM12] 12" OC Crossmembers
Cross-Members	3" Crossmembers on 16" Centers	-
Floor	2" Treated Pine Lumber Deck	[-FLRO] Rough Oak Floor [-FLNF] No Flooring
Fenders	9" x 72" Treadplate Removable Steel Fenders	-
Stake Pockets	24" Stake Pocket Spacing	-
Wiring	All-Weather Wiring Harness (7-way RV)	-
Tires	ST235/80R16 Radial Tires 10 ply (3,520 lbs.)	-
Paint Color	[K] Primer + Black Powder Coat	[1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [B] Primer + Jet Blue Coat (NEW!) [J] Primer + Industrial Green Coat (NEW!) [Y] Primer + Industrial Yellow Coat (NEW!) [G] Primer + Slime Green Coat (NEW!)

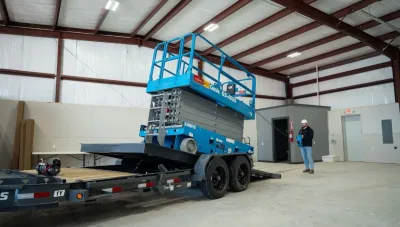

Tilt Deck Operation	Hydraulic Dampening With Deck Locking	-
Rubrail	Rubrail & Stake Pockets	-
Tie-Downs	(6) D-rings	[-RT01] 1 Pair Weld-On Ratchets [-DR01] 1 Extra Pair D-Rings
Breakaway System	Electric Breakaway System w/ Charger	-
Battery	Available as an option	[-BYSL] Solar Battery Charger
Hydraulics	Hydraulic - Cushioned Gravity tilt	-

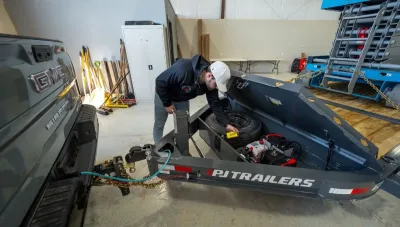

Storage	Full-Tongue Locking Toolbox w/ Exterior Lashing Points	-
Cargo Winch	Available as an option	[-WN01] Plate for Winch (BP Only) [-WN03] Winch Plate w/ Welded Receiver Hitch [-WN12] Winch 12.5K w/Plate & Battery [-WN95] Winch 10k w/ Plate & Battery [-WNFR] Roller on Front of Deck for Winch Cable
Pipe Chain Spools	Pipe Spools	-
Tilt Deck Angle	12 Degrees	-
Lift Cylinder	3" x 16" Cylinder	-
Other Options	Available as an option	[-GV09] 9,900 G.V.W.R. [-TRA1] 1/2 x 1/2 Square Traction Bars

Models & dimensions

Model	Pull Type	GVWR	Empty Weight	Payload Capacity	Deck Length	Deck Width	Tongue Length
TY (20')	Bumperpull	15400 lbs	4200 lbs	11200 lbs	20	83"	60"
TY (22')	Bumperpull	15400 lbs	4350 lbs	11050 lbs	22	83"	60"
TY (24')	Bumperpull	15400 lbs	4500 lbs	10900 lbs	24	83"	60"
