The Drive Over Fenders are built to handle oversized equipment without the hassle. Their rugged design lets you drive directly over them, streamlining the loading process and minimizing the risk of damage.
- Frame
- 8" or 12" I-Beam Frame

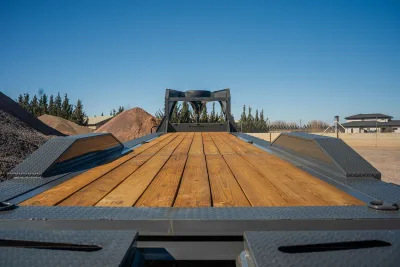

- Deck Width
- 102"

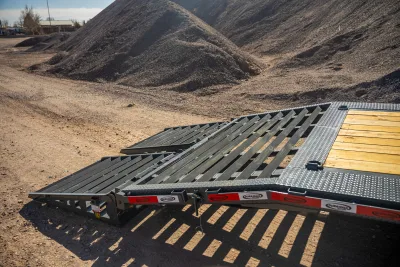

- Dovetail
- 4'

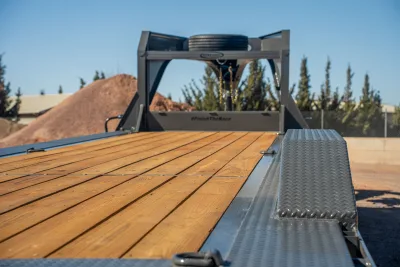

- Decking
- 1½" Double-Treated Wood

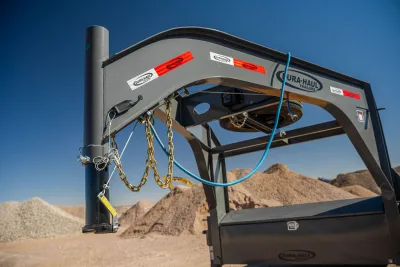

- Gooseneck
- 12" Engineered Gooseneck
- Frame & Deck: Side Step
- Included

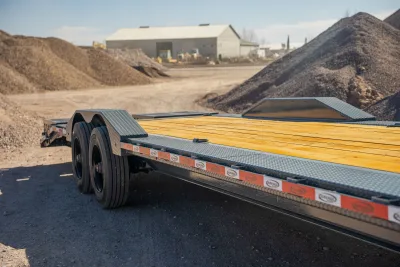

- Fenders
- 7 Gauge Diamond Plate Drive Over Fenders

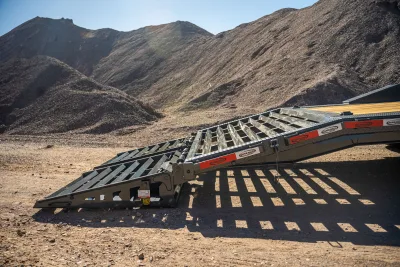

- Ramp Type
- Dura Ramps
- Winch Plate
- Included
- D-Rings
- (6) 1/2" Around Bed
- Rubrail
- Included
- Stake Pockets
- Along Sides
- EZ Latch
- Quick Coupler Release Outside the Truck Bed
- Coupler
- 2-5/16" Adjustable Up & Down
- Jack
- 12,000 lb Spring-Loaded Adjustable Leg Crank Jack
- Safety Chains
- (2)

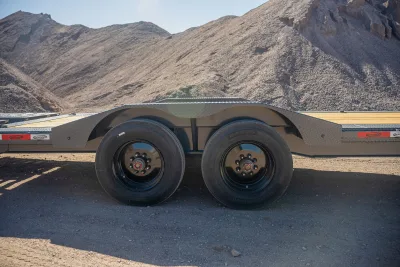

- Axles, Brakes & Suspension: Axles
- 8,000 to 10,000 lb Tandem Axles
- Brakes
- Electric Brakes
- Suspension
- Torsion Axles
- Tires
- ST235/80R16 or ST235/80R17.5 LRE
- Tire Configuration
- 14-Ply or 18-Ply
- Wheels
- 8-Hole
- Hubs
- Quick Lube Hubs & Dust Caps
- Toolbox
- Lockable
- Equipment & Convenience: Side Step
- Included
- Drive Over Fenders
- Included

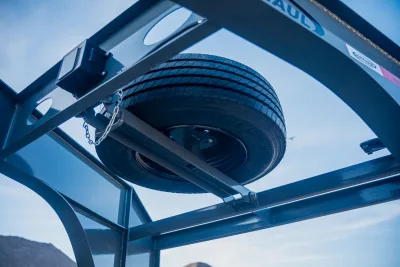

- Spare Tire Mount
- Drop-Down
- Wiring
- All-Weather Wiring & Harness
- Safety Break-Away
- System with Cable and Battery
- LED Markers
-
- (11) DOT-Approved - Fender
- Side & Rear
- Safety Tape
- Reflective DOT Safety Tape
- Finish
- Superior Powder Coat Paint Finish
- Color
- Optional
- Deck on Neck
- Optional
- Hydraulic Jack
- Optional
- Available Options: Axles
- Optional Configuration
- Spare Tire
- Optional
- Winch
- Optional
- GVWR
- Up to 20,000 lbs
- Weight
- 3,650 - 7,300 lbs
- Width
- 102 in
- Length
- 24+4 - 28+4 ft
- Axles
- Tandem 8K-10K
Spec sheets & brochures
Standard features
- Dura Ramps
- 102" Wide Deck
- 4' Dovetail
- 12" Engineered Gooseneck
- EZ Latch Coupler
- Drive Over Fenders
- Tandem Torsion Axles
- Double-Treated Wood Decking
- Drop-Down Spare Tire Mount
Models & dimensions
| Size | Axles | GVWR | Weight |
|---|---|---|---|
| 24' | 8K-10K | 16,000-20,000 lbs | 3,650 lbs |
| 26' | 8K-10K | 16,000-20,000 lbs | 4,100 lbs |
| 28' | 8K-10K | 16,000-20,000 lbs | 4,550 lbs |
| 32' | 10K | 20,000 lbs | 7,300 lbs |
