Dura-Haul · Equipment Haulers
Ekh-ds
Engineered for superior strength and enhanced load capacity, making it ideal for transporting heavy equipment and machinery. With a reinforced wood deck and multiple tie-down points, your cargo is secured for every journey.

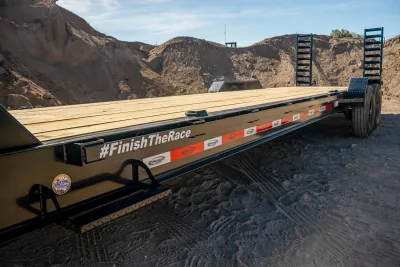

- Frame
- 8" I-Beam
- Deck Width
- 83"

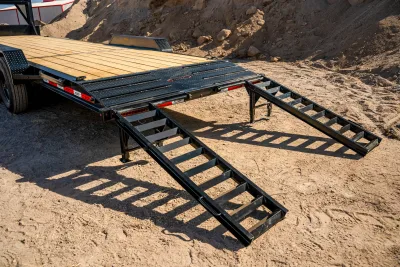

- Dovetail
- 2'

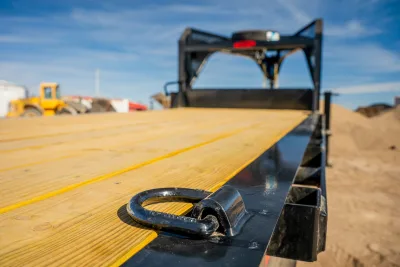

- Decking
- 1½" Double-Treated Wood

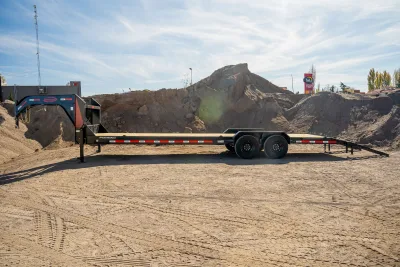

- Gooseneck

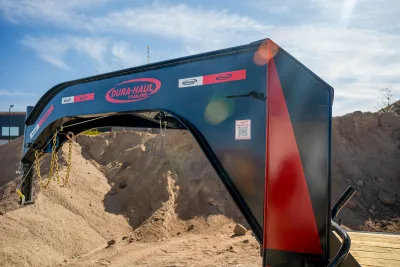

- 12" Engineered Gooseneck
- Side Step
- Included
- Fenders
- Removable

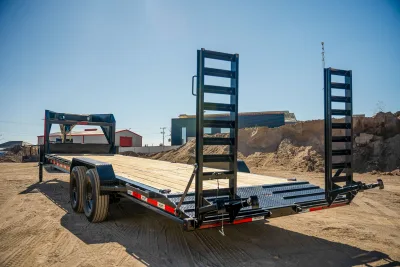

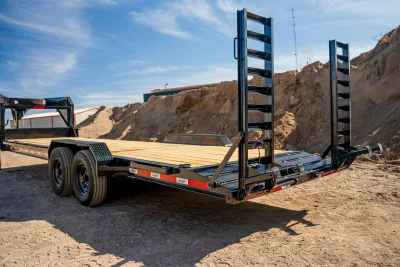

- Ramp Type
- Stand Up Ramps
- Winch Plate
- Included
- D-Rings
- (6) 1/2" Around Bed
- Rubrail
- Included
- Stake Pockets
- Along Sides
- EZ Latch
- Quick Release Outside Truck Bed
- Coupler
- 2-5/16" Adjustable Up & Down
- Jack
- 12,000 lb Spring-Loaded Adjustable Leg Crank Jack
- Safety Chains
- (2)

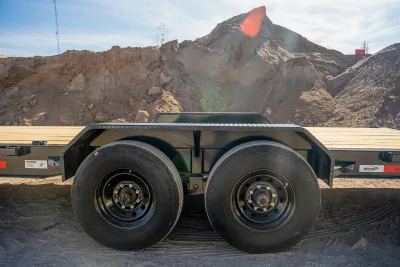

- Axles
- 8,000 lb Tandem Axles
- Brakes
- Electric Brakes
- Suspension
- Multi-Leaf Spring with Equalizer
- Tires
- ST235/80R16 - 14 Ply
- Wheels
- 8-Hole
- Hubs
- Quick Lube Hubs & Dust Caps
- Toolbox
- Lockable

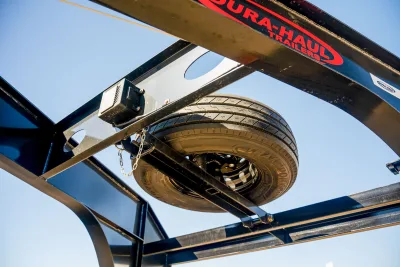

- Spare Tire Mount
- Drop-Down Spare Tire Mount
- Wiring
- All-Weather Wiring & Harness
- Safety Break-Away
- System with Cable and Battery
- LED Markers
-
- (11) DOT Approved - Fender
- Side & Rear
- Safety Tape
- Reflective DOT Safety Tape
- Finish
- Superior Powder Coat Paint Finish
- Color
- Optional
- Deck on Neck
- Optional
- Winch
- Optional
- Hydraulic Jack
- Optional
- GVWR
- Up to 16,000 lbs
- Weight
- 3,650 - 7,300 lbs
- Width
- 83 in
- Length
- 22+2 - 28+2 ft
Spec sheets & brochures
Standard features
- Stand Up Ramps
- 2' Dovetail
- 12" Engineered Gooseneck

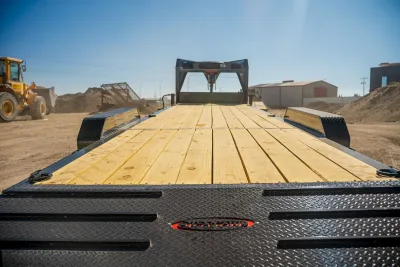

- 83" Wide Deck
- 16K Tandem Axle Configuration
- 8" I-Beam Frame
- EZ Latch Coupler
- Double-Treated Wood Decking
- Drop-Down Spare Tire Mount
Models & dimensions
| Size | Axles | GVWR | Weight |
|---|---|---|---|
| 20' | 7K-8K | 16,000 lbs | 3,373 lbs |
| 24' | 7K-8K | 16,000 lbs | 4,100 lbs |
| 28' | 7K-8K | 16,000 lbs | 7,300 lbs |
We carry Dura-Haul
Want this Dura-Haul Ekh-ds? Check what we have on the lot right now, or ask us to order the exact configuration you need.
