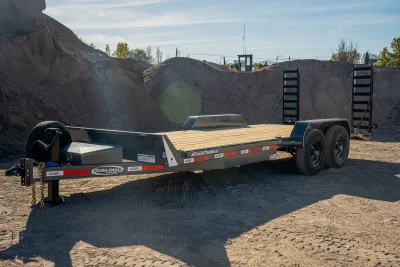

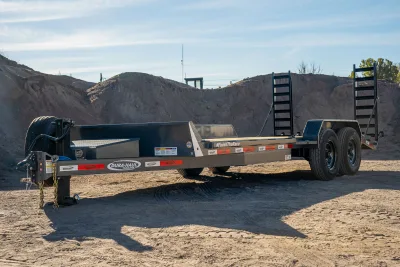

Dura-Haul · Equipment Haulers
Erh-ds
Engineered for heavy-duty performance, the Equipment Hauler delivers strength and dependability for smooth, efficient operations on any terrain. Count on Dura Haul for hauling that works as hard as you do.
- Frame & Tongue
- 6" Channel
- Deck Width
- 83"
- Dovetail
- 2'
- Decking
- 1½" Treated Wood
- Bed Cross-Members
- 3" Channel - 16" OC
- Front Stop Rail
- Formed

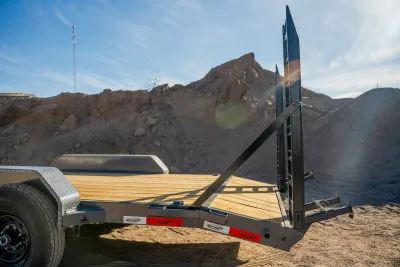

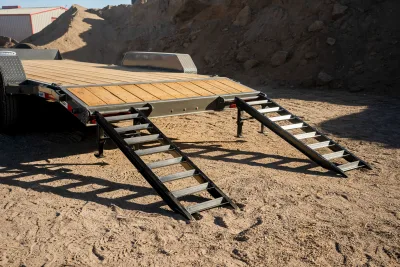

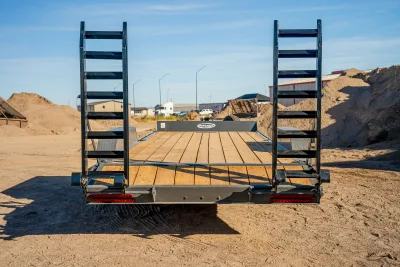

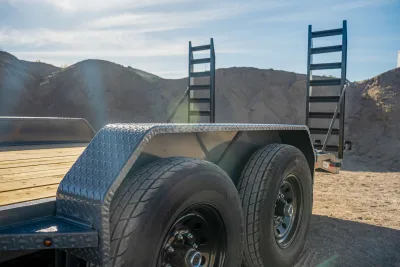

- Ramp Type
- Stand Up Ramps with Stabilizer Adjustments
- Winch Plate
- Included

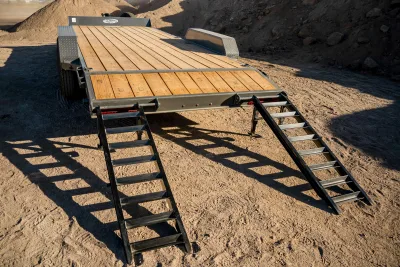

- Rear Stabilizer Mounts
- Easy-Fit Stabilizer Mounts

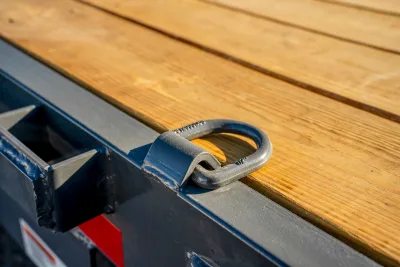

- D-Rings
- (6) 1/2" Around Bed
- Rubrail
- Included

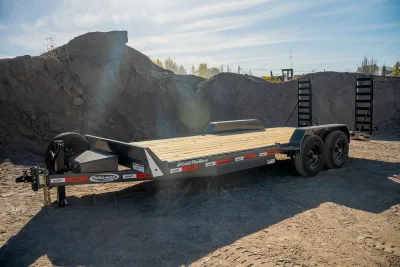

- Stake Pockets
- Along Sides

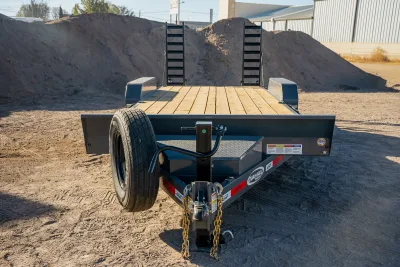

- Coupler
- 2-5/16" Adjustable Coupler - 5 Positions
- Jack
- 12,000 lb Spring-Loaded Adjustable Leg Crank Jack
- Safety Chains
- (2)

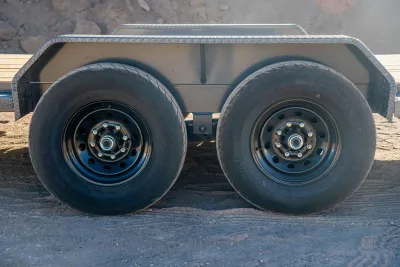

- Axles
- 7,000 lb Tandem
- Brakes
- Electric Brakes
- Suspension
- Multi-Leaf Spring with Equalizer
- Tires
- ST235/80R16 LRE
- Wheels
- 16" 8-Hole
- Hubs
- Quick Lube Hubs & Dust Caps
- Toolbox
- Lockable
- Fenders
- Removable Diamond Plate
- Spare Tire
- Spare Tire Mount
- Wiring
- All-Weather Wiring & Harness
- Safety Break-Away
- System with Cable and Battery
- LED Markers
-
- (11) DOT Approved - Fender
- Side & Rear
- Safety Tape
- Reflective DOT Safety Tape
- Finish
- Superior Powder Coat Paint Finish
- Color
- Optional
- Stand Up Ramps
- Optional
- Winch
- Optional
- GVWR
- Up to 14,000 lbs
- Weight
- 2,840 - 3,000 lbs
- Width
- 83 in
- Length
- 18 - 22 ft
Spec sheets & brochures
Standard features
- Stand Up Ramps with Stabilizer Adjustments
- 83" Wide Deck
- Rear Easy-Fit Stabilizer Mounts
- 6" Channel Frame & Tongue
- 7K Tandem Axles
- 1½" Treated Wood Decking
- Six 1/2" D-Rings
- Removable Diamond Plate Fenders
- Rubrail & Stake Pockets
Models & dimensions
| Size | Axles | GVWR | Weight |
|---|---|---|---|
| 18' | 7K Tandem | 14,000 lbs | 2,840 lbs |
| 20' | 7K Tandem | 14,000 lbs | 2,920 lbs |
| 22' | 7K Tandem | 14,000 lbs | 3,000 lbs |
We carry Dura-Haul
Want this Dura-Haul Erh-ds? Check what we have on the lot right now, or ask us to order the exact configuration you need.
