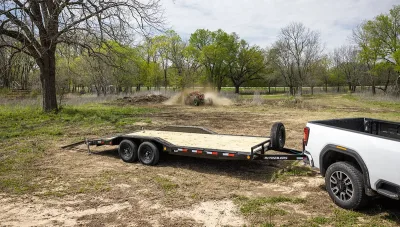

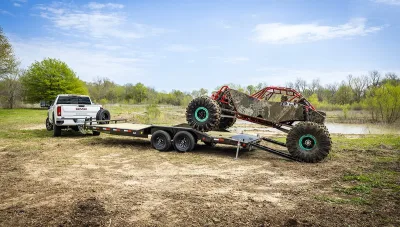

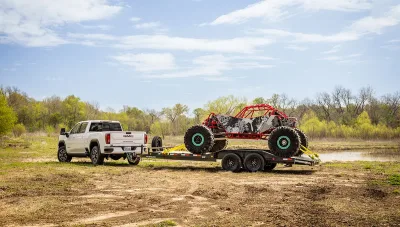

5" Channel Buggy Hauler Model B5

It’s time to go wide with the 5" Channel Buggy Hauler Trailer (B5), sporting a full 102’’ wide deck that’s ready to haul your dreams.

The B5 is built to handle tough conditions and help you get through them. It features diamond-plated steel fenders that you can drive over when unloading and loading extra-wide vehicles. Designed with a 5" channel frame and tongue, the B5 also includes d-rings, a rub rail with pipe spools, stake pockets, and a front bump rail. These features give you the versatility and durability you need to tackle whatever challenges come your way on the road.

Deck Width: 102"
Deck Lengths: 16' to 22'
GVWR: 10,000 lbs
Load Capacity: 7,350 to 7,729 lbs

See PJ Trailers in stock Request a quote

Spec sheets & brochures

Spec Sheet PDF · 598 KB View Color Options PDF · 656 KB

Standard features

Feature	Standard	Available options
Axles	[52BS] (2) 5,200# Electric / Spring	[52CS] (2) 5,200# One Electric / Spring
Suspension	4-Leaf Double-Eye Spring Suspension	-
Tongue	5" Channel Tongue	-
Coupler	[J] BP 2-5/16" Adjustable- Demco EZ-Latch	[J] BP 2-5/16" Adjustable [P] 3" Pintle Eye - Channel-Mount (14,000 lb.)
Safety Chains	5/16" Grade 30 Safety Chain w/Clevis hook (2 each)	-
Jack	Top Wind Drop Leg Jack (8,000 lb.)	[-JA09] Upgrade to Single 10k Jack [-JA13] Rear Trailer Support Jacks [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only)
Frame	5" Channel Frame	[-CM12] 12" OC Crossmembers
Cross-Members	3” Channel Crossmembers 16” oc	-
Floor	2" Treated Pine Lumber Deck	[-SF03] 11ga DP Steel Floor on Dovetail [-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck [-FLRO] Rough Oak Floor [-FLNF] No Flooring [-SF02] 11ga DP Steel Flr w/ Flushmount D-Rings &16" OC
Fenders	9" Drive-over 1/4" Diamond Plate Steel Fenders	-

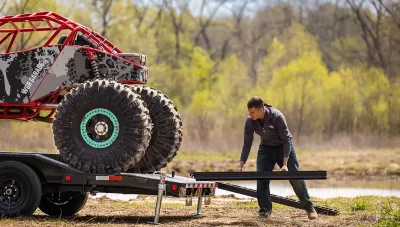

Ramps	5' Slide-In Ramps w/ Holders	-
Stake Pockets	24" Stake Pocket Spacing	[-2SPF] 2 Stake Pockets In Front of Trailer
Lights	Available as an option	[-LT10] GN Light Bar w/ 4 Lights (GN Only)
Wiring	All-Weather Wiring Harness (7-way RV)	-
Paint Color	[K] Primer + Black Powder Coat	[1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [B] Primer + Jet Blue Coat (NEW!) [J] Primer + Industrial Green Coat (NEW!) [Y] Primer + Industrial Yellow Coat (NEW!) [G] Primer + Slime Green Coat (NEW!)
Rubrail	Rubrail & Stake Pockets	-
Tie-Downs	(6) Flushmount D-rings	[-DR01] 1 Extra Pair D-Rings [-DR21] 1 Extra Pair Flushmount D-Rings
Breakaway System	Electric Breakaway System w/ Charger	-
Battery	Available as an option	[-BYSL] Solar Battery Charger
Stabilizers	Rear Stabilizer Stands	-
Storage	Available as an option	[-TB04] Full Size Toolbox (Bumper Pull) [-TB05] Front Toolbox
Cargo Winch	Available as an option	[-WN01] Plate for Winch (BP Only) [-WN03] Winch Plate w/ Welded Receiver Hitch [-WN95] Winch 10k w/ Plate & Battery [-WNRR] Roller on Rear of Deck for Winch Cable
Pipe Chain Spools	Pipe Spools	-
Tail	[S] Straight Deck w/ Rear Slide-in Ramps	[A] 2' Dovetail w/ 2 Fold-up Ramps [N]2' Dovetail w/ 5' Rear Slide-in Ramps

Models & dimensions

Model	Pull Type	GVWR	Empty Weight	Deck Length	Deck Width	Tongue Length
B5 (16')	Bumperpull	10000 lbs	2271 lbs	16	102"	3' 10" (46")
B5 (18')	Bumperpull	10000 lbs	2360 lbs	18	102"	3' 10" (46")
B5 (20')	Bumperpull	10000 lbs	2500 lbs	20	102"	3' 10" (46")
B5 (22')	Bumperpull	10000 lbs	2650 lbs	22	102"	3' 10" (46")
