PJ Trailers · Car Haulers

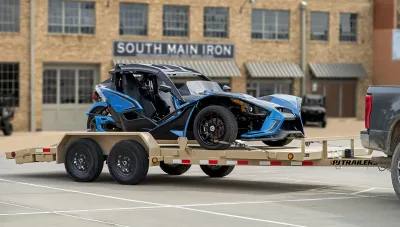

4" Channel Carhauler Model C4

Experience a cost-effective way to haul cars with our 4" Channel Carhauler Trailer (C4).

An economical solution to reliably transport your car from here to there, the C4 is built for simplicity and durability. From cars and small tractors to ATVs and UTVs, this trailer has exactly what you need to haul vehicles safely and securely. Plus, it’s available with an optional 2’ dovetail to make unloading and loading a cinch.

Deck Width: 83"
Deck Lengths: 14' to 20'
GVWR: 7,000 lbs
Load Capacity: 5,000 to 5,300 lbs

See PJ Trailers in stock Request a quote

Spec sheets & brochures

Spec Sheet PDF · 724 KB View Color Options PDF · 656 KB

Standard features

Feature	Standard	Available options
Axles	[32CS] (2) 3,500# Axles, (1) Electric - (1) Idler / Spring	[12CS] (2) 3,500# Axles, (1) Electric - (1) Idler / Spring w/ 225/75R15 Tire Upgrade [12BS] (2) 3,500# Axles Electric / Spring w/ 225/75R15 Tire Upgrade [32BS] (2) 3,500# Electric / Spring
Suspension	4-Leaf Double-Eye Spring Suspension	-
Tongue	4" Channel Tongue	-
Coupler	[2] BP 2" A-Frame	[2] BP 2" A-Frame [A] BP 2-5/16" A-Frame
Safety Chains	5/16" Grade 30 Safety Chain w/Clevis hook (2 each)	-
Jack	Pipe Mount Swivel Jack (5,000 lb.)	[-JA12] Upgrade to 7k Jack [-JA13] Rear Trailer Support Jacks
Frame	4" Channel Frame	[-CM16] 16" OC Crossmembers
Cross-Members	2-1/2" Angle Crossmembers 24" oc	-
Bump Rail	Front Bump Rail	-
Floor	2" Treated Pine Lumber Deck	[-BWFD] Blackwood Pro Full Deck [-FLNF] No Flooring [-SF02] 11ga DP Steel Flr w/ Flushmount D-Rings &16" OC
Fenders	9" x 33" Treadplate Removable Aluminum Fenders	[-FE05] Steel Diamond Plate Fenders
Ramps	5' Slide-In Ramps w/ Holders	-
Stake Pockets	24" Stake Pocket Spacing	[-2SPF] 2 Stake Pockets In Front of Trailer
Wiring	All-Weather Wiring Harness (7-way RV)	-
Paint Color	[K] Primer + Black Powder Coat	[1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [B] Primer + Jet Blue Coat (NEW!) [J] Primer + Industrial Green Coat (NEW!) [Y] Primer + Industrial Yellow Coat (NEW!) [G] Primer + Slime Green Coat (NEW!)
Tie-Downs	Available as an option	[-DR01] 1 Extra Pair D-Rings [-SRRR] 2" Rubrail
Breakaway System	Electric Breakaway System w/ Charger	-
Storage	Available as an option	[-TB01] Front Toolbox (Includes 7k jack upgrade)
Cargo Winch	Available as an option	[-WN01] Plate for Winch (BP Only) [-WN95] Winch 10k w/ Plate & Battery [-WNFR] Roller on Front of Deck for Winch Cable
Tail	[S] Straight deck w/ 5' Slide-in Ramps	[N] 2' Dovetail w/ 5' Slide-in Ramps

Models & dimensions

Model	Pull Type	GVWR	Empty Weight	Deck Length	Deck Width	Tongue Length
C4 (14')	Bumperpull	7000 lbs	1700 lbs	14	83"	3' 9" (45")
C4 (16')	Bumperpull	7000 lbs	1800 lbs	16	83"	3' 9" (45")
C4 (18')	Bumperpull	7000 lbs	1900 lbs	18	83"	3' 9" (45")
C4 (20')	Bumperpull	7000 lbs	2000 lbs	20	83"	3' 9" (45")
