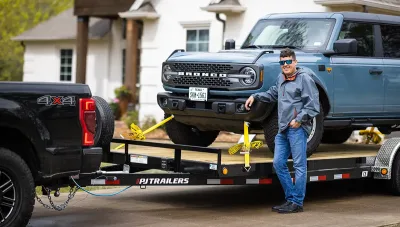

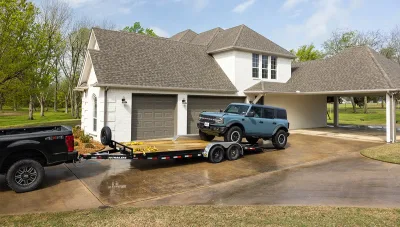

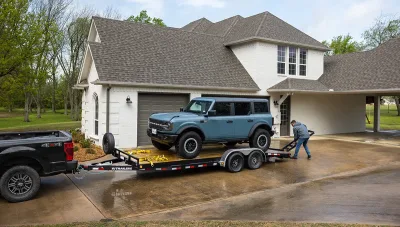

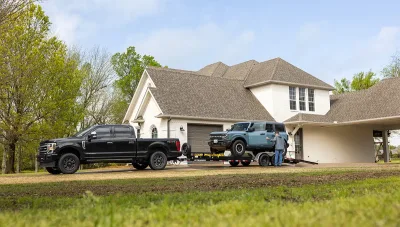

5" Channel Carhauler Model C5

Equipped with a 5" channel frame and tongue for long-lasting hauling prowess, the 5" Channel Carhauler Trailer (C5) has the strength, durability, and versatility needed to help you transport what you’re most driven by; vehicles.

It’s built from the ground up to make hauling cars, small tractors, ATVs, and UTVs an easier task, from its slide-in ramps and additional deck length to stake pockets and 5,000 lbs. swivel jack. And its removable aluminum teardrop fenders give you additional flexibility during loading and loading while also simplifying maintenance tasks.

Deck Width: 83"
Deck Lengths: 16' to 22'
GVWR: 7,000 lbs
Load Capacity: 4,650 to 5,000 lbs

See PJ Trailers in stock Request a quote

Spec sheets & brochures

Spec Sheet PDF · 1.1 MB View Color Options PDF · 656 KB

Standard features

Feature	Standard	Available options
Axles	[32CS] (2) 3,500# Axles, (1) Electric - (1) Idler / Spring	[12CS] (2) 3,500# Axles, (1) Electric - (1) Idler / Spring w/ 225/75R15 Tire Upgrade [12BS] (2) 3,500# Axles Electric / Spring w/ 225/75R15 Tire Upgrade [32BS] (2) 3,500# Electric / Spring
Suspension	4-Leaf Double-Eye Spring Suspension	-
Tongue	5" Channel Tongue	-
Coupler	[2] BP 2" A-Frame	[2] BP 2" A-Frame [A] BP 2-5/16" A-Frame [J] BP 2-5/16" Adjustable (14,000 lb.)
Safety Chains	5/16" Grade 30 Safety Chain w/Clevis hook (2 each)	-
Jack	Pipe Mount Swivel Jack (5,000 lb.)	[-JA09] Upgrade to Single 10k Jack [-JA12] Upgrade to 7k Jack [-JA13] Rear Trailer Support Jacks
Frame	5" Channel Frame	[-CM12] 12" OC Crossmembers [-CM16] 16" OC Crossmembers
Cross-Members	3" Channel Crossmembers 24" oc	-
Bump Rail	Front Bump Rail	-
Floor	2" Treated Pine Lumber Deck	[-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck [-FLRO] Rough Oak Floor [-FLNF] No Flooring [-SF02] 11ga DP Steel Flr w/ Flushmount D-Rings &16" OC
Fenders	9" x 33" Treadplate Removable Aluminum Fenders	[-FE05] Steel Diamond Plate Fenders
Ramps	5' Slide-In Ramps w/ Holders	-
Stake Pockets	24" Stake Pocket Spacing	[-2SPF] 2 Stake Pockets In Front of Trailer
Wiring	All-Weather Wiring Harness (7-way RV)	-
Paint Color	[K] Primer + Black Powder Coat	[1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [B] Primer + Jet Blue Coat (NEW!) [J] Primer + Industrial Green Coat (NEW!) [Y] Primer + Industrial Yellow Coat (NEW!) [G] Primer + Slime Green Coat (NEW!)
Rubrail	Rubrail & Stake Pockets	-
Tie-Downs	Available as an option	[-DR01] 1 Extra Pair D-Rings [-DR21] 1 Extra Pair Flushmount D-Rings [-SRRR] 2" Rubrail
Breakaway System	Electric Breakaway System w/ Charger	-
Storage	Available as an option	[-TB01] Front Toolbox (Includes 7k jack upgrade)
Cargo Winch	Available as an option	[-WN01] Plate for Winch (BP Only) [-WN03] Winch Plate w/ Welded Receiver Hitch [-WN12] Winch 12.5K w/Plate & Battery [-WN95] Winch 10k w/ Plate & Battery
Tail	[S] Straight Deck w/ Rear Slide-in Ramps	[N] 2' Dovetail w/ 5' Rear Slide-in Ramps

Models & dimensions

Model	Pull Type	GVWR	Empty Weight	Deck Length	Deck Width	Tongue Length
C5 (16')	Bumperpull	7000 lbs	2000 lbs	16	83"	4' 7" (55")
C5 (18')	Bumperpull	7000 lbs	2100 lbs	18	83"	4' 7" (55")
C5 (20')	Bumperpull	7000 lbs	2230 lbs	20	83"	4' 7" (55")
C5 (22')	Bumperpull	7000 lbs	2350 lbs	22	83"	4' 7" (55")
