PJ Trailers · Car Haulers

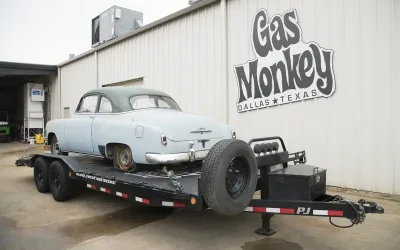

6" Channel Super-Wide Model B6

Haul a variety of vehicles and be ready to overcome whatever challenges you encounter with the versatile 6" Channel Super-Wide (B6) Trailer.

Offering more capacity and customizable to your liking, the B6 is the next step for those seeking a vehicle hauler with a little more oomph. Able to haul a wide range of load sizes and types (up to 16,000 lbs. G.V.W.R., depending on configuration), this trailer is built to make loading, unloading, and transporting vehicles and extra wide equipment a cinch with its drive-over fender design and rub rail with pipe spools and flushmount d-rings. So, what are you waiting for? Secure your cargo. Get on the road. Make your dreams come true.

Deck Width: 102"
Deck Lengths: 20' to 24'
GVWR: 14,000 lbs
Load Capacity: 10,580 to 12,650 lbs

See PJ Trailers in stock Request a quote

Spec sheets & brochures

Spec Sheet PDF · 5.4 MB View Color Options PDF · 656 KB

Standard features

Feature	Standard	Available options
Axles	[72BS] (2) 7,000# Electric / Spring	[82BS] (2) 8,000# Oil Bath w/14 Ply LR-G Tires Electric / Spring [92BS] (2) 7,000# w/14 Ply LR-G Tires Electric / Spring
Suspension	6-Leaf Slipper Spring Suspension	-
Tongue	6" Channel Tongue	-
Coupler	[J] BP 2-5/16" Adjustable (14,000 lb.)	[J] BP 2-5/16" Adjustable (14,000 lb.) [P] 3" Pintle Eye - Channel-Mount (20,000 lb.) [T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6-Hole Channel Bracket
Safety Chains	5/16" Grade 70 Safety Chain w/Clevis hook (2 each)	-
Jack	Spring Loaded Drop Leg Jack (12,000 lb.)	[-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA05] 1 Hydraulic Jack (BP Only) [-JA06] 2 Hydraulic Jacks (GN Upgrade) [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only) [-JA19] 2 Hydraulic Jacks for BP [-JA21] Dual Jacks for BP
Frame	8" Channel Frame	[-CM12] 12" OC Crossmembers
Cross-Members	3” Channel Crossmembers 16” oc	-
Floor	2" Treated Pine Lumber Deck	[-BWFT] Blackwood Pro Full Deck (Tail Only) [-SF03] 11ga DP Steel Floor on Dovetail [-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck [-FLRO] Rough Oak Floor [-FLNF] No Flooring [-SF01] 11ga (1/8") DP Steel Floor w/ Flushmount D-Rings & 12" OC [-SF04] 3/16" DP Steel Floor w/ Flushmount D-Rings & 12" OC
Fenders	10" X 93" Drive-over 1/4" Diamond Plate Steel Fenders	-
Ramps	5' Slide-In Ramps w/ Holders	-
Stake Pockets	24" Stake Pocket Spacing	[-2SPF] 2 Stake Pockets In Front of Trailer
Lights	Available as an option	[-LT10] GN Light Bar w/ 4 Lights (GN Only)
Wiring	All-Weather Wiring Harness (7-way RV)	-
Tires	ST235/80R16 Radial Tires 10 ply (3,520 lbs.)	-
Paint Color	[K] Primer + Black Powder Coat	[1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [B] Primer + Jet Blue Coat (NEW!) [J] Primer + Industrial Green Coat (NEW!) [Y] Primer + Industrial Yellow Coat (NEW!) [G] Primer + Slime Green Coat (NEW!)
Rubrail	Rubrail & Stake Pockets	-
Tie-Downs	(6) D-rings	[-DR01] 1 Extra Pair D-Rings [-DR21] 1 Extra Pair Flushmount D-Rings
Breakaway System	Electric Breakaway System w/ Charger	-
Battery	Available as an option	[-BYSL] Solar Battery Charger
Stabilizers	Rear Stabilizer Stands	-
Storage	Available as an option	[-GNC2] 2 GN Lockable Chain Holders [-GNCH] GN Lockable Chain Holder [-TB02] Top Riser Toolbox [-TB03] Full Size Divided Toolbox Upgrade [-TB05] Front Toolbox [-TB06] Locking Lid Over Tongue
Cargo Winch	Available as an option	[-WN01] Plate for Winch (BP Only) [-WN02] HD GN Winch Plate [-WN03] Winch Plate w/ Welded Receiver Hitch [-WN04] Gooseneck Winch Plate [-WN12] Winch 12.5K w/Plate & Battery [-WN18] Winch 18K w/HD Plate & Battery [-WN95] Winch 10k w/ Plate & Battery [-WNRR] Roller on Rear of Deck for Winch Cable
Pipe Chain Spools	Pipe Spools	-
Tail	[S] Straight Deck w/ Rear Slide-in Ramps	[B] 2' Dovetail w/ 5' Fold-up Ramps [D] 2' Dovetail w/ 31 x 66 HD Fold-up Ramps [5] 3.5' Dovetail w/ 2 Monster Ramps [N] 2' Dovetail w/ 5' Rear Slide-in Ramps [L] Straight deck w/ 31 x 66 HD Fold-up Ramps
Other Options	Available as an option	[-GV09] 9,900 G.V.W.R. [-GV16] 16,000 GVWR Must have 16k coupler/7k axles min. [-TRA1] 1/2 x 1/2 Square Traction Bars

Models & dimensions

Model	Pull Type	GVWR	Empty Weight	Deck Length	Deck Width	Tongue Length
B6 (20')	Bumperpull	14000 lbs	3420 lbs	20	102"	4' 7" (55")
B6 (22')	Bumperpull	14000 lbs	3640 lbs	22	102"	4' 7" (55")
B6 (24')	Bumperpull	14000 lbs	3850 lbs	24	102"	4' 7" (55")
