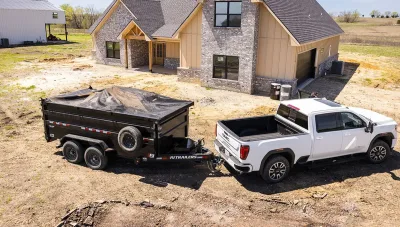

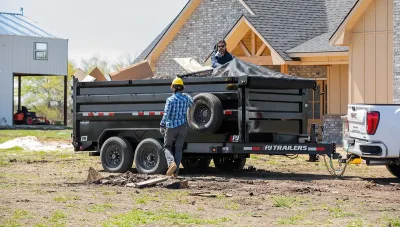

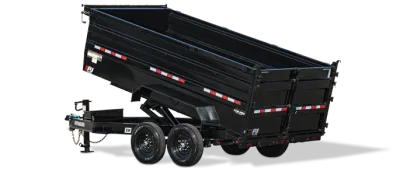

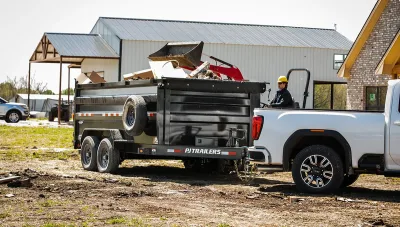

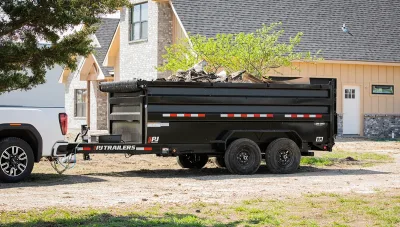

83" Low-Pro High Side Dump Model DM

Hauling a wide variety of materials? The versatile 83" Low-Pro High Side Dump Trailer (DM) is the answer you’re looking for.

Featuring a class-leading scissor lift cylinder and slide-in ramps to make unloading and loading effortless, this powerful dump trailer has the strength, durability, and power needed when the going gets tough. And its 48”, reinforced high sides (with optional 36’’ sides available) are perfect when you’re hauling and dumping uneven or loose materials. In other words, the DM is here to help you forge your own path, no matter what you’re hauling.

Bed Width: 83"
Bed Lengths: 12' to 16'
GVWR: 15,400 lbs
Load Capacity: 10,530 to 11,760 lbs

See PJ Trailers in stock Request a quote

Spec sheets & brochures

Spec Sheet PDF · 1.0 MB View Color Options PDF · 656 KB

Standard features

Feature	Standard	Available options
Axles	[72BS] (2) 7,000# Electric / Spring	[72BD] (2) 7,000# Electric / Drop Axle [92BS] (2) 7,000# w/14 Ply LR-G Tires Electric / Spring [92BD] (2) 7,000# w/14 Ply LR-G Tires Electric / Drop Axle [Y2BS] (2) 7,000# w/215/75R17.5 LR-H Singles Electric / Spring
Suspension	6-Leaf Slipper Spring Suspension	-
Tongue	8" x 10 lb. I-beam Tongue	-
Coupler	[J] BP 2-5/16" Adjustable- Demco EZ-Latch	[P] 3" Pintle Eye - Channel-Mount (20,000 lb.) [R] GN 2-5/16" Round (25,000 lb.) [S] GN 2-5/16" Square (25,000 lb.) [T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6-Hole Channel Bracket
Safety Chains	5/16" Grade 70 Safety Chain w/Clevis hook (2 each)	-
Jack	Drop Leg Jack (12,000 lb.)	[-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA04] Upgrade to Single 10k Jack (BP Only) [-JA05] 1 Hydraulic Jack (BP Only) [-JA06] 2 Hydraulic Jacks (GN Upgrade) [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only)
Frame	8" x 10 lb. I-Beam Main Frame	[-CM12] 12" OC Crossmembers
Cross-Members	3” Channel Crossmembers 16” oc	-
Floor	7ga. Steel Bed	-
Fenders	1/8" Treadplate Steel Fenders	-
Ramps	6' 5" Slide-In Channel Ramps	-
Stake Pockets	Stake Pockets on Both Sides (Quantity Varies by Length)	-
Wiring	All-Weather Wiring Harness (7-way RV)	-
Tires	ST235/80R16 Radial Tires 10 ply (3,520 lbs.)	-
Paint Color	[K] Primer + Black Powder Coat	[1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [B] Primer + Jet Blue Coat (NEW!) [J] Primer + Industrial Green Coat (NEW!) [Y] Primer + Industrial Yellow Coat (NEW!) [G] Primer + Slime Green Coat (NEW!)
Tie-Downs	(4) D-Rings (Welded inside the Box)	[-DR01] 1 Extra Pair D-Rings
Breakaway System	Electric Breakaway System w/ Charger	-
Battery	12V Deep Cycle Battery	[-BYEB] 1 Extra Battery [-BYSL] Solar Battery Charger
Charging System	110V Integrated Trickle Charger	-
Hydraulics	Hydraulic - Power Up/Power Down & Gravity Down	-
Lift Type	Scissor Lift	-
Sides	48" 10ga. UniWall Steel Sides	[-SE24] 24" Side Extensions (Solid) [-SW03] 3ft Tall Sides
Stabilizers	Rear Stabilizer Stands	-
Steps	Ultra-Wide Monster Step (Driver's Side)	-
Storage	Lockable Full Tongue Toolbox (Houses Battery, Pump + Storage)	[-TB02] Top Riser Toolbox [-TB03] Full Size Divided Toolbox Upgrade
Tarp	Roll-up Tarp Kit (Pull Bar) 7' x 20'	-
Cargo Winch	Available as an option	[-WN02] HD GN Winch Plate [-WN04] Gooseneck Winch Plate
Tail	[T] Split / Spreader Gate	-
Dump Gate	2-Way Gate (Barn Doors & Spreader Gate)	-
Lift Cylinder	5" x 17" Cylinder w/Scissor & 5" x 21" on 16'	-
Other Options	Available as an option	[-DON1] Removable Deck on the Neck (102" Wide 96" Long) [-GV09] 9,900 G.V.W.R.

Models & dimensions

Model	Pull Type	GVWR	Empty Weight	Bed Length	Bed Width	Tongue Length
DM (12')	Bumperpull	15400 lbs	4870 lbs	12	83"	4' 10" (60")
DM (14')	Bumperpull	15400 lbs	5180 lbs	14	83"	4' 10" (60")
DM (16')	Bumperpull	15400 lbs	5640 lbs	16	83"	4' 10" (60")
