PJ Trailers · Dump Trailers

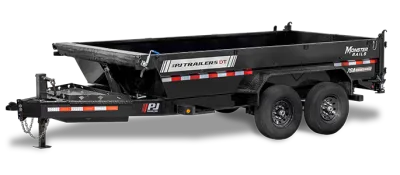

83" Telescopic Dump Model DT1

The future is here with the all-new DT, a revolutionary dump trailer that redefines industry standards.

The redesigned DT is a powerful dump trailer with 5-Stage Front-Mount Telescopic Cylinder technology, handling heavy loads with ease. The front-positioned cylinder improves accessibility, while the 45° bed angle speeds up unloading. The next-gen PJ dump body features Monster Rails for 30% more strength, and the Demco EZ-Latch and Monster-Sized Toolbox offer added convenience. The 4' side version hauls up to 16.3 yd³ of materials, built for performance and longevity.

Bed Width: 83"
Bed Lengths: 14' to 14'
GVWR: 15,400 lbs
Load Capacity: 11,420 lbs

See PJ Trailers in stock Request a quote

Spec sheets & brochures

Spec Sheet PDF · 1,012 KB View Color Options PDF · 656 KB

Standard features

Feature	Standard	Available options
Axles	[72BS] (2) 7,000# Electric / Spring	[72BD] (2) 7,000# Electric / Drop Axle [82BS] (2) 8,000# Oil Bath w/14 Ply LR-G Tires Electric / Spring [92BS] (2) 7,000# w/14 Ply LR-G Tires Electric / Spring [92BD] (2) 7,000# w/14 Ply LR-G Tires Electric / Drop Axle [K2BS] (2) 8,000# Oil Bath w/215/75R17.5 LR-H Singles Electric / Spring [Y2BS] (2) 7,000# w/215/75R17.5 LR-H Singles Electric / Spring
Suspension	6-Leaf Slipper Spring Suspension	-
Tongue	8" x 13 lb. I-beam Tongue	-
Coupler	[J] BP 2-5/16" Adjustable- Demco EZ-Latch	[P] 3" Pintle Eye - Channel-Mount (20,000 lb.) [T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6-Hole Channel Bracket
Jack	Drop Leg Jack (12,000 lb.)	[-JA05] 1 Hydraulic Jack (BP Only) [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only)
Frame	8" x 13 lb. I-Beam Main Frame	-
Cross-Members	3” Channel Crossmembers 16” oc	-
Floor	7ga. Steel Bed	-
Fenders	1/8" Treadplate Steel Fenders	-

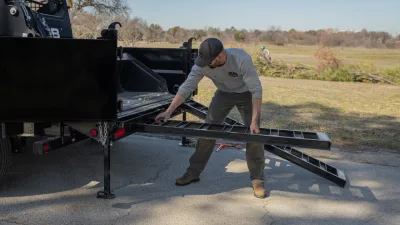

Ramps	6' 5" Slide-In Channel Ramps	-
Stake Pockets	Stake Pockets on Both Sides (Quantity Varies by Length)	-
Wiring	All-Weather Wiring Harness (7-way RV)	-
Tires	ST235/80R16 Radial Tires 10 ply (3,520 lbs.)	-
Spare Tire	Available as an option	[-SP01] Spare Tire (Default Tire) [-SP09] Spare Tire Option 215/75/17.5 (H) SNG BLK Mod (TW21575R1758SBM) [-SP18] Spare Tire Option 235/80R16 14ply SNG BLK Mod (TW23580R168SLRGBM)
Paint Color	[K] Primer + Black Powder Coat	[1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [B] Primer + Jet Blue Coat (NEW!) [J] Primer + Industrial Green Coat (NEW!) [Y] Primer + Industrial Yellow Coat (NEW!) [G] Primer + Slime Green Coat (NEW!)
Tie-Downs	(4) D-Rings (Welded inside the Box)	[-DR01] 1 Extra Pair D-Rings
Battery	12V Deep Cycle Battery	[-BYEB] 1 Extra Battery [-BYSL] Solar Battery Charger
Sides	24" 10ga. Steel Sides w/ Monster Rails	[-SW04] 4ft Tall Sides
Stabilizers	Rear Stabilizer Stands	-
Steps	Treadplate Step (Both Sides)	-
Tarp	Roll-up Tarp Kit (Pull Bar) 7' x 20'	-
Tail	[T] Split / Spreader Gate	-
Dump Gate	2-Way Gate (Barn Doors & Spreader Gate)	-
Other Options	Available as an option	[-GV09] 9,900 G.V.W.R. [-VYGR] Solar Charger, Swing Arm Tarp, Hydraulic Jack, 14Ply tires
