Voyager Dump Model DV
Introducing the Voyager Dump (DV) from PJ Trailers, part of the all-new Voyager Series.

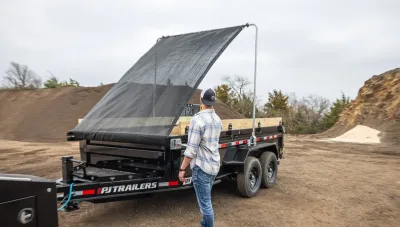

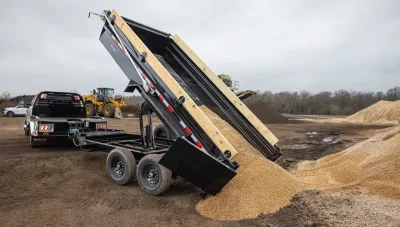

Designed for hardworking professionals like you who demand durability and innovation, this dump trailer boasts a seamless 8" I-beam frame and tongue for maximum strength, alongside a Monster-Sized Toolbox for comprehensive storage solutions. Enhanced with a Spring-Loaded Swing Arm Tarp and sturdy board brackets, it's engineered for efficiency. Plus, you’ll appreciate the advanced Scissor-Lift Hydraulic System features power-up, power-down, and gravity-down functionality, which make the DV the ultimate work companion.
- Bed Width
- 83"
- Bed Lengths
- 14' to 16'
- GVWR
- 15,400 lbs
- Load Capacity
- 10,770 to 11,220 lbs
Spec sheets & brochures
Standard features
| Feature | Standard | Available options |
|---|---|---|
| Axles | [92BS] (2) 7,000# w/14 Ply LR-G Tires Electric / Spring |
|
| Suspension | 6-Leaf Slipper Spring Suspension | - |
| Tongue | 8" x 10 lb. I-beam Tongue | - |
| Coupler | [J] BP 2-5/16" Adjustable- Demco EZ-Latch |
|
| Jack | Hydraulic Jack | - |
| Frame | 8" x 10 lb. Formed I-Beam Main Frame |
|
| Cross-Members | 3” Channel Crossmembers 16” oc | - |
| Floor | 7ga. Steel Bed | - |
| Fenders | 1/8" Treadplate Steel Fenders | - |
| Ramps | 6' 5" Slide-In Channel Ramps | - |
| Stake Pockets | Stake Pockets on Both Sides (Quantity Varies by Length) | - |
| Lights | DOT Approved Flushmount Lifetime LED Lights | - |
| Wiring | All-Weather Wiring Harness (7-way RV) | - |
| Tires | 235/80R16 Radial Tires (3,520 lb) LRG | - |
| Paint Color | [K] Primer + Black Powder Coat |
|
| Tie-Downs | (4) D-Rings (Welded inside the Box) |
|
| Breakaway System | Electric Breakaway Kit w/ Charger | - |
| Battery | 12V Deep Cycle Battery |
|
| Charging System | 110V Integrated Trickle Charger | - |
| Hydraulics | Hydraulic - Power Up/Power Down & Gravity Down | - |
| Lift Type | Scissor Lift | - |
| Sides | 24" 10ga. Steel Sides |
|
| Stabilizers | Rear Stabilizer Stands | - |
| Steps | Driver Side Monster Step | - |
| Storage | Lockable Full Tongue Toolbox (Houses Battery, Pump + Storage) | - |
| Tarp | Spring Arm Crank Tarp Kit | - |
| Tail | [T] Split / Spreader Gate | - |
| Dump Gate | 2-Way Gate (Barn Doors & Spreader Gate) | - |
| Other Options | Available as an option |
|
Models & dimensions
| Model | Pull Type | GVWR | Empty Weight | Bed Length | Bed Width | Tongue Length |
|---|---|---|---|---|---|---|
| DV (14') | Bumperpull | 15400 lbs | 4,180 lbs | 14 | 83" | 4'10" |
| DV (16') | Bumperpull | 15400 lbs | 4,630 lbs | 16 | 83" | 4'10" |
