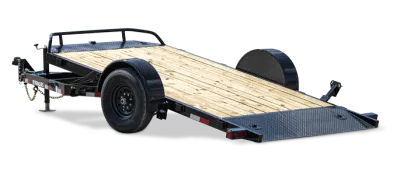

Single Axle HD Tilt Model T1

Don’t let its size fool you, the Single Axle HD Tilt Trailer (T1) is ready to face challenges and obstacles head on.

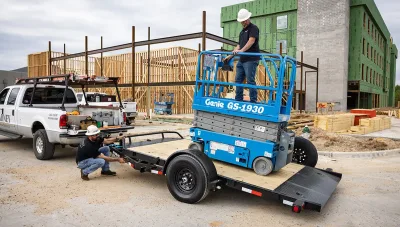

The T1 trailer comes with a smooth hydraulic system and a diamond plate knife edge tail. These features help you load and unload cargo with ease. It can carry many types of smaller vehicles or light-duty equipment, even ones with low clearance, like scissor lifts or forklifts. The T1 gives you great value, simple hauling, and the freedom to keep chasing your goals.

Deck Width: 81"
Deck Lengths: 13' to 16'
GVWR: 7,000 lbs
Load Capacity: 4,800 lbs

See PJ Trailers in stock Request a quote

Spec sheets & brochures

Spec Sheet PDF · 896 KB View Color Options PDF · 656 KB

Standard features

Feature	Standard	Available options
Axles	[71BD] (1) 7,000# Electric / Drop Axle	[91BD] (1) 7,000# w/14 Ply LR-G Tires Electric / Drop Axle
Suspension	6-Leaf Slipper Spring Suspension	-
Tongue	5" x 2" Steel Tube Tongue	-
Coupler	[J] BP 2-5/16" Adjustable- Demco EZ-Latch	[J] BP 2-5/16" Adjustable [P] 3" Pintle Eye - Channel-Mount (14,000 lb.)
Safety Chains	5/16" Grade 70 Safety Chain w/Clevis hook (2 each)	-
Jack	Top Wind Drop Leg Jack (8,000 lb.)	[-JA04] Upgrade to Single 10k Jack (BP Only) [-JA09] Upgrade to Single 10k Jack
Frame	5" x 2" Steel Tube Frame	[-CM12] 12" OC Crossmembers
Cross-Members	3" Channel Crossmembers on 16" Centers	-
Bump Rail	Bull Nose Bumper	-
Floor	2" Treated Pine Lumber Deck	[-BWOD] Blackwood Pro Outer Deck [-BWFD] Blackwood Pro Full Deck [-FLRO] Rough Oak Floor [-FLNF] No Flooring [-SF02] 11ga DP Steel Flr w/ Flushmount D-Rings &16" OC
Fenders	14 Gauge Treadplate Removable Steel Fenders	[-FE04] Weld on Fenders
Stake Pockets	Stake Pockets along both sides (Quantity depends on length)	[-2SPF] 2 Stake Pockets In Front of Trailer
Wiring	All-Weather Wiring Harness (7-way RV)	-
Tires	ST235/80R16 Radial Tires 10 ply (3,520 lbs.)	-
Paint Color	[K] Primer + Black Powder Coat	[K] Black Powder Coat [1] Primer + Red Powder Coat (Texas Only) [3] Primer + White Powder Coat (Texas Only) [5] Primer + Tractor Orange Powder Coat (Texas Only) [6] Primer + Grey Powder Coat (Texas Only) [8] Primer + Desert Tan Powder Coat (Texas Only) [P] Primer Only [Z] No Paint No Primer
Tilt Deck Dimensions	81" x 13' Tilting Deck	-
Tie-Downs	(5) Flushmount D-rings & (1) Center D-ring	[-RT01] 1 Pair Weld-On Ratchets [-DR01] 1 Extra Pair D-Rings [-DR21] 1 Extra Pair Flushmount D-Rings [-SRRR] 2" Rubrail
Breakaway System	Electric Breakaway System w/ Charger	-
Battery	Available as an option	[-BYSC] Solar Battery Charger
Hydraulics	Hydraulic - Cushioned Gravity tilt	-
Storage	Available as an option	[-TB03] Full Size Divided Toolbox Upgrade [-TB05] Front Toolbox
Cargo Winch	Available as an option	[-WN01] Plate for Winch (BP Only) [-WN03] Winch Plate w/ Welded Receiver Hitch [-WN95] Winch 10k w/ Plate & Battery [-WNFR] Roller on Front of Deck for Winch Cable
Tilt Deck Angle	11°	-
Tail	[T] Tilt Deck	-
Lift Cylinder	Hydraulic Cushion Cylinder w/ Reservoir	-
Other Options	Available as an option	[-TRA1] 1/2 x 1/2 Square Traction Bars
