PJ Trailers · Car Haulers

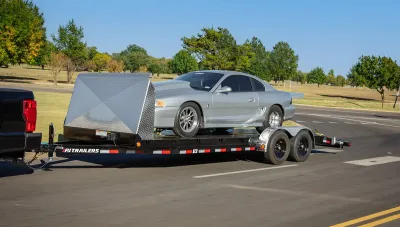

Steel Deck Car Hauler Model CH

Got a vehicle that you’re proud of and want to show it off? You can’t go wrong with our eye-catching Steel Deck Car Hauler Trailer (CH).

Beautiful to look at and strong as a rock, the CH features an 11-gauge steel deck that delivers both top-tier hauling capabilities and an incredibly durable, reliable floor for your vehicle. Plus, we offer an optional aluminum rock shield for additional protection for the cargo you’ve worked so hard for. For looks and hauling, the CH does it all.

Deck Width: 83"
Deck Lengths: 18' to 22'
GVWR: 7,000 lbs
Load Capacity: 4,500 to 7,500 lbs

See PJ Trailers in stock Request a quote

Spec sheets & brochures

Spec Sheet PDF · 856 KB View Color Options PDF · 656 KB

Standard features

Feature	Standard	Available options
Axles	[32CS] (2) 3,500# Axles, (1) Electric - (1) Idler / Spring	[12CS] (2) 3,500# Axles, (1) Electric - (1) Idler / Spring w/ 225/75R15 Tire Upgrade [12BS] (2) 3,500# Axles Electric / Spring w/ 225/75R15 Tire Upgrade [32BS] (2) 3,500# Electric / Spring [52BS] (2) 5,200# Electric / Spring
Suspension	4-Leaf Double-Eye Spring Suspension	-
Tongue	5" Channel Tongue	-
Coupler	[2] BP 2" A-Frame	[2] BP 2" A-Frame [J] BP 2-5/16" Adjustable (14,000 lb.)
Safety Chains	5/16" Grade 30 Safety Chain w/Clevis hook (2 each)	-
Jack	8K Drop Leg Jack	[-JA13] Rear Trailer Support Jacks
Frame	5" Channel Frame	[-CM12] 12" OC Crossmembers
Cross-Members	3" Channel Crossmembers on 16" (12" OC Optional) Centers	-
Bump Rail	Front Bump Rail	-
Floor	11-Gauge Steel Diamond Plate	-
Fenders	Removeable Aluminum Treadplate Fenders	[-FE05] Steel Diamond Plate Fenders

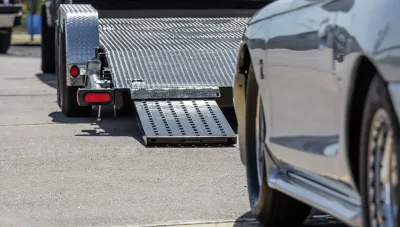

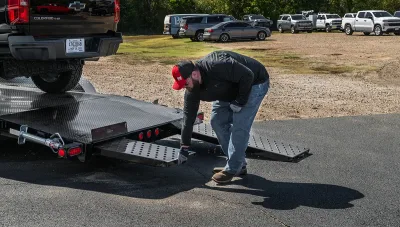

Ramps	5' Rapid Ramps	-
Stake Pockets	24" Stake Pocket Spacing	-
Wiring	All-Weather Wiring Harness (7-way RV)	-
Paint Color	[K] Primer + Black Powder Coat	[1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [B] Primer + Jet Blue Coat (NEW!) [J] Primer + Industrial Green Coat (NEW!) [Y] Primer + Industrial Yellow Coat (NEW!) [G] Primer + Slime Green Coat (NEW!)
Rubrail	Rubrail & Stake Pockets	-

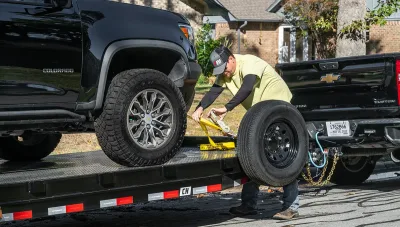

Tie-Downs	(6) D-rings	[-DR21] 1 Extra Pair Flushmount D-Rings [-SRRR] 2" Rubrail
Breakaway System	Electric Breakaway System w/ Charger	-
Storage	Available as an option	[-TB05] Front Toolbox
Cargo Winch	Available as an option	[-WN01] Plate for Winch (BP Only) [-WN95] Winch 10k w/ Plate & Battery
Front Rock Shield	Available as an option	[-RCK1] Aluminum Front Rockshield
Tail	[P] 4' Dovetail w/ 5' Rear Slide-in Ramps	-

Models & dimensions

Model	Pull Type	GVWR	Empty Weight	Deck Length	Deck Width	Tongue Length
CH (18')	Bumperpull	7000 lbs	2260 lbs	18	83"	4' 7" (55")
CH (20')	Bumperpull	7000 lbs	2390 lbs	20	83"	4' 7" (55")
CH (22')	Bumperpull	7000 lbs	2510 lbs	22	83"	4' 7" (55")
