PJ Trailers · Dump Trailers

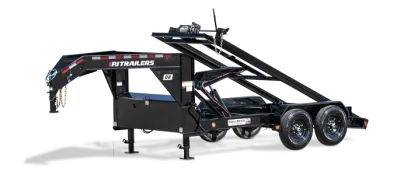

Roll-Off Dump Model DR

Purpose-built to be used at multiple job sites, the Roll-Off Dump Trailer (DR) is designed to haul hard for construction, junk removal, and dumpster rental businesses, featuring stacking bins that offer plenty of hauling capacity.

Engineered with professional-grade components to hold up against the toughest conditions, the DR is outfitted with a durable I-beam frame design, winch designed for roll-off applications, scissor-lift system, heavy-duty walls, and reinforced sides. It’s a trailer with the drive to take a beating and keep going and going.

Bed Width: 83" (Bin) & 96" (Deck)
Bed Lengths: 14' to 14'
GVWR: 15,400 lbs
Load Capacity: 11,400 lbs

See PJ Trailers in stock Request a quote

Spec sheets & brochures

Spec Sheet PDF · 5.0 MB View Color Options PDF · 656 KB

Standard features

Feature	Standard	Available options
Axles	[72BS] (2) 7,000# Electric / Spring	[82BS] (2) 8,000# Oil Bath w/14 Ply LR-G Tires Electric / Spring [92BS] (2) 7,000# w/14 Ply LR-G Tires Electric / Spring
Suspension	6-Leaf Slipper Spring Suspension	-
Tongue	6" Channel Tongue	-
Coupler	[J] BP 2-5/16" Adjustable- Demco EZ-Latch	[A] BP 2-5/16" Adjustable (14,000 lb.) [P] 3" Pintle Eye - Channel-Mount (20,000 lb.) [R] GN 2-5/16" Round (25,000 lb.) [S] GN 2-5/16" Square (25,000 lb.) [T] BP 2-5/16" Adjustable Coupler (20,000 lb.) w/HD 6-Hole Channel Bracket
Jack	Spring Loaded Drop Leg Jack (12,000 lb.)	[-JA02] 2-Speed Gooseneck Jack Upgrade (12,000 lb.) [-JA05] 1 Hydraulic Jack (BP Only) [-JA06] 2 Hydraulic Jacks (GN Upgrade) [-JA17] Single 2-speed Jack (12,000 lb.) (BP Only) [-JA18] Dual 2-Speed Jacks (BP Only) [-JA19] 2 Hydraulic Jacks for BP
Frame	6" Channel Frame	-
Cross-Members	3” Channel Crossmembers 16” oc	-
Fenders	1/8" Treadplate Steel Fenders	-
Wiring	All-Weather Wiring Harness (7-way RV)	-
Tires	ST235/80R16 Radial Tires 10 ply (3,520 lbs.)	-
Paint Color	[K] Primer + Black Powder Coat	[1] Primer + Red Powder Coat [3] Primer + White Powder Coat [5] Primer + Tractor Orange Powder Coat [6] Primer + Grey Powder Coat [8] Primer + Desert Tan Powder Coat [B] Primer + Jet Blue Coat (NEW!) [J] Primer + Industrial Green Coat (NEW!) [Y] Primer + Industrial Yellow Coat (NEW!) [G] Primer + Slime Green Coat (NEW!)
Breakaway System	Electric Breakaway System w/ Charger	-
Battery	(2) Power Volt Group 27 Batteries	[-BYEB] 1 Extra Battery [-BYSL] Solar Battery Charger
Charging System	110V Integrated Trickle Charger	-
Hydraulics	Hydraulic - Power Up/Power Down & Gravity Down	-
Lift Type	Scissor Lift	-
Sides	48" (Roll-Off Bin)	-
Cargo Winch	Available as an option	[-WN02] HD GN Winch Plate
Tail	[S] Straight Deck	-
Lift Cylinder	5" x 21" Cylinder w/Scissor Lift	-
Other Options	Available as an option	[-DON1] Removable Deck on the Neck (102" Wide 96" Long) [-GV16] 16,000 GVWR Must have 16k coupler/7k axles min. [-KD01] 1 - Roll Off Dump w/Barn Door (Bin) [-KD02] 2 - 1 - Roll Off Dump w/Barn Door (Bin) [-KD03] 3 - 1 - Roll Off Dump w/Barn Door (Bin) [-KD04] 4 - 1 - Roll Off Dump w/Barn Door (Bin) [-KD05] 5 - 1 - Roll Off Dump w/Barn Door (Bin) [-KD06] 6 - 1 - Roll Off Dump w/Barn Door (Bin)
